Mavi Deniz, water-filled load Test Bag designed for crane, lifting equipment, lifeboat, gangways load test operations. The capacity of each water bag is up to 100 tonnes.

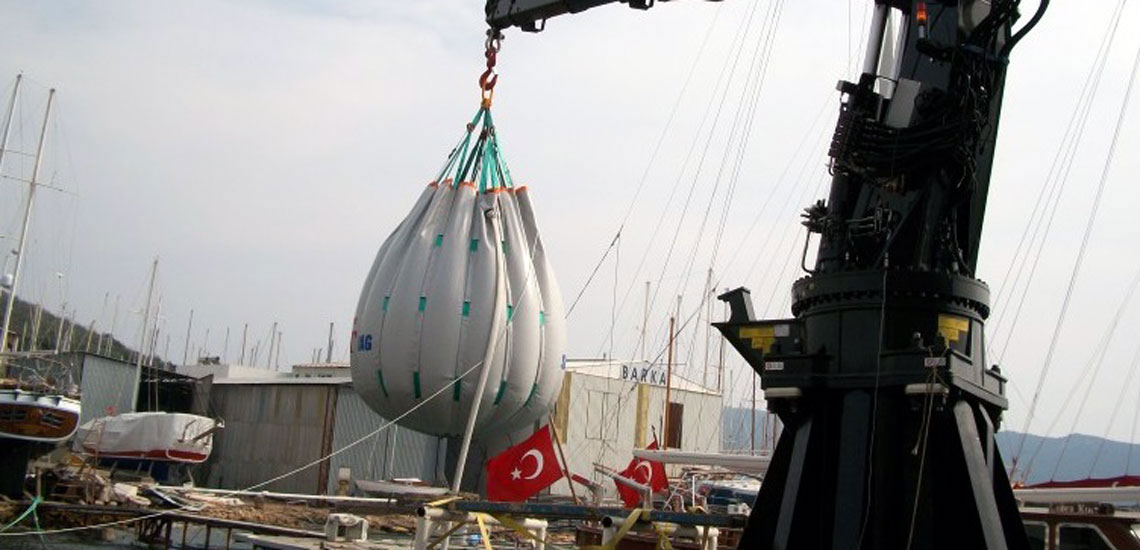

Crane Water-filled Testing Weight Bags

Streamline your crane testing operations with Mavi Deniz load test bags and load measuring products. Crane Test Water Bags are made from 100% “High Tenacity” PVC coated polyester fabric material, which comes ready with: safety shackles, master link, fluid transfer fittings, and valves required for operation.

The Mavi Deniz Crane Load Test Bags’ continued development has substantially increased the practicability, economy, and safety of providing load testing on cranes in power plants, general industry, construction, and marine operations. These bags can also use as emergency fluid storage containers.

During transportation and staging, the bags with load cells weigh just a fraction of their rated capacity keeping freight costs, storage space, floor loading, and especially workforce to a minimum.

Crane Test Water Bags features are:

  • Foldable for easy storage and transportation.
  • Used worldwide for ship-deck cranes, offshore rigs, and general-purpose cranes.
  • Water Bag 3D Model FEA (Finite Element Analysis) Force & Stress
  • Test multiple crane sizes with one fluid weight.

Testing Applications include, but is not limited to:

  • Cranes
  • Winches
  • Davits
  • Pad Eyes
  • Hoists
  • Beams
  • Gantries
  • Elevators
  • Monorails
  • Floors
  • Ramps
  • Platforms
  • Gangways
  • Lifts
  • Bridges

Capacities range from 1 to 100 Tonnes ( 1,000 to 100,000 Kg).

The continued development of water-filled proof load bags has substantially increased the practicability, economy, and safety of providing proof load testing on cranes in power plants, general industry, construction, and marine operations.

The bags with load cells weigh approximately 2% of their rated capacity during transportation and staging, keeping freight costs, storage space, floor loading, and especially workforce to a minimum.

The load is always measured accurately with a certified loadcell or flowmeter, so exact weight variations required during the test are always achieved by filling or dumping the bags.

Testing Applications include:

  • Crane-Davits
  • Derricks
  • Winches
  • Davits
  • Pad Eyes
  • Hoists
  • Beams
  • Gantries
  • Elevators
  • Monorails
  • Nets
  • Bridges, Floors, Gangways, Platforms, Ramps
  • Lifts
  • Boat Hoist Testing
Mooring Boat IMooring Boat IIMooring Boat IIIMooring Boat IVMooring Boat V
MaterialAluminium / Steel
Length6.5 m7.5 m9 m10.5 m12.5 m
Width2.4 m2.6 m3 m4.5 m4.5 m
Draft1.5 m1.6 m1.5 m1.5 m1.5 m
F/O Tank200 lt200 lt200 lt200 lt200 lt
Engine100 hp150 hp200 hp225 hp250 hp
Bollard Pull1 T1.2 T1.5 T1.6 T6 T
Speed8 Knot8.5 Knot8.5 Knot8.5 Knot9.5 Knot
OptionalFire Canon / Oil Boom / Oil Skimmer / Spray System / Diving Equipments / Shacklers / Crane

Davit, Lifeboat, Gangway Water-filled testing weight bags

Lifeboat and Davit Test Water Bags used for evenly distributed load tests. These load test bags come with fill/offload fittings and an automatic relief valve activated once the lifeboat bags achieve the desired weight.

Mavi Deniz Lifeboat Testing Systems designs to provide a safe and straightforward test load to life-saving appliances. Lifeboat test bags allow for gradual application and uniform distribution of the load. Controlled loading, unloading, and minimal handling of the test load to achieve a wide range of capacities result in minimum equipment downtime during load tests.

Lifeboat Testing Systems are an extremely safe and straightforward method of proof load testing. The bags are light and easily positioned and fulfill the requirement for an evenly distributed load test. A control manifold and pumping system are used to remotely fill and drain the water bags, negating the need for personnel to be in the craft while undergoing a proof load test. Loading is measured and verified using a calibrated flowmeter.

Gangway Load Testing Bags are also available and offered in all custom sizes.

These bags’ accessories include pumps & manifold systems, hoses, carry/storage satchel, and Marine-grade shipping/storage plywood box.

Some of the Lifeboat Key features are:

  • Foldable for easy storage and transportation.
  • Made of high-strength coated fabrics.
  • Complete with all accessories and fill/offloading systems.
  • Flat Bottom Lifeboat Bags are also available.
  • Complete Lifeboat Testing System Kit available.

Testing applications include, but is not limited to:

  • Lifeboat load testing
  • Life Raft load testing
  • Gangway load testing
  • Free Fall Lifeboat testing
  • Davit Launch Life Raft testing
  • Platform & Dock testing
SEA BARRACUDA 40SEA BARRACUDA 50SEA BARRACUDA 60
Length40 m50 m60 m
Beam12 m12 m15 m
Draft5.0 m5.5 m5.5 m
Hull TypeMono Hull
Oil Storage Tank250 m³400 m³800 m³
Fresh Water Tank100 m³200 m³400 m³
F/O Tank100 m³200 m³500 m³
Engine2 x 970 Kw2 x 1170 Kw2 x 1700 Kw
Generator2 x 150 Kw3 x 200 Kw3 x 280 Kw
Bow Thruster1 x 100 Kw1 x 200 Kw1 x 300 Kw
Speed12 knots13 knots14 knots
Oil Recovery Rate2 x 100 m³ / hr2 x 200 m³ / hr2 x 300 m³ / hr
Oil Collection Speed0 - 4 knots
Oil Spill Detection System1 - 4 miles radius
Oil Spill Response Equipments400 m Oil Containment Booms - 2 x 6 m Dispersant Spray Sys. - 1 x 6 m Work Boat
Sewage Treatment Plant25 liters/hr50 liters/hr100 liters/hr
Oily Water Separator1 x 0.5 m³/hr1 x 1.0 m³/hr1 x 1.5 m³/hr
ElectronicsGMDSS Sea Area A3
Multifunctional CranesElectro-Hydraulic Crane 5 tons at 8 m
Rescue Device1 x Rescue Boat
PaintEpoxy coating underwater hull, decks & superstructure with a lifetime of about 3 years.
Accommodation10 persons12 persons16 persons
OptionalFire Fighting System - Fi-Fi 1 | A-Frame | Bow & Stern Thruster | Dynamic Position System
Bow Thruster | Towing Winch | Diving Equipment System | Hydrographic Equipment
