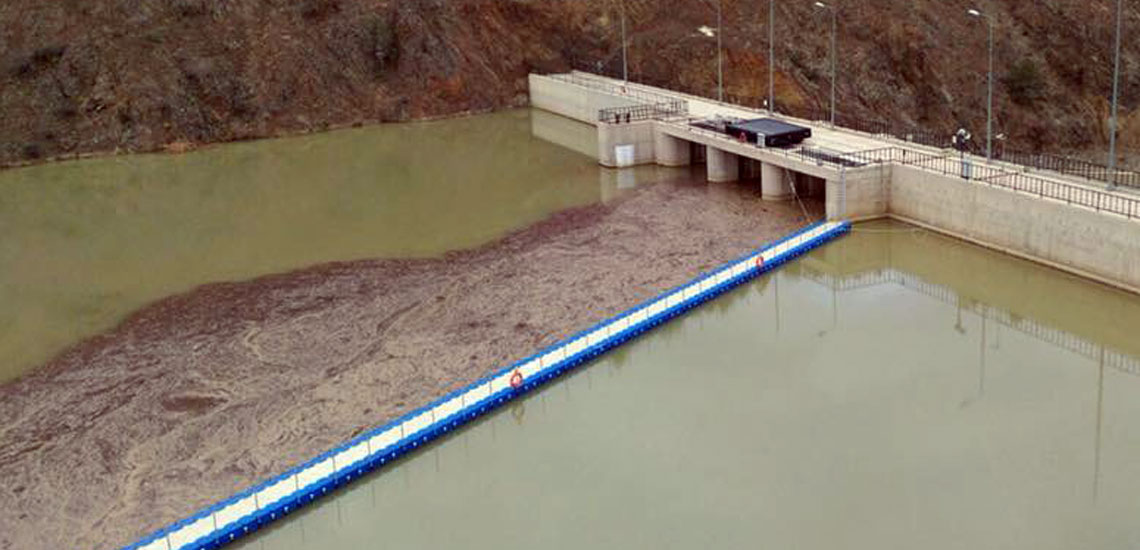

Dam Floating Barrier is a modular floating platform system with security railings and a grill system. Dam Floating Barrier is designed to use in hydroelectric power units and dams. Floating Barrier can use in four seasons.

Floating Barrier has special connectors that can easily assembly everywhere with special fixing methods, and also, the water level won’t be a problem. Dam Floating Barrier has a unique grill system that holds the trash, and also floating barrier grill system can easily clean up and have a long time.

Dam Modular Trash Barrier 1Dam Modular Trash Barrier 2
Overall height0,5 m1 m
Freeboard0,2 m0,2 m
Draft0,2 m0,2 m
Tensile Strength1900 kg1900 kg
Debris Screen Height0,5 m1 m
Debris Screen MaterialGalvanized MeshGalvanized Mesh
Flotation MaterialHDPEHDPE
Flotation Size50 cm x 50 cm x 40 cm50 cm x 50 cm x 40 cm
Flotation Wide1.5 m (Standard) / 2 m (Optional)1.5 m (Standard) / 2 m (Optional)
Flotation ColorBlue, / Orange / Grey / BeigeBlue, / Orange / Grey / Beige
ConnectorPinPin
