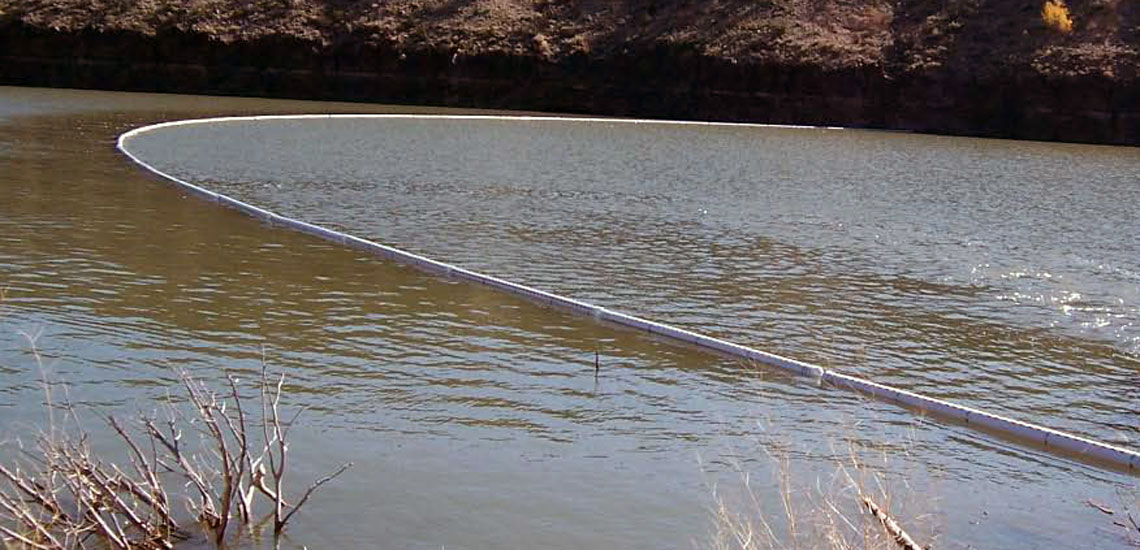

Mavi Deniz’s Log Boom and Debris Barrier is a heavy-duty debris control system designed to control and recover floating trash.
Mavi Deniz’s Log Boom and Debris Barrier are ideal for marine environments, power plants, rivers, dams, floating trash, floating logs, and other floating
debris.
Log Boom and Debris Barrier are easy to install + maintain + service; no special equipment is required for servicing,
Features

  • All pieces of the Barrier are in ASTM-Z International Standards.
  • The Barrier is highly durable against water and sunlight.
  • Debris Barrier Float sizes, components, and lengths can be arranged for your requirements.
  • Lead weights are under the Barrier.
  • The Barrier can move Due to the High-Tide and Low-Tide of the water.
  • Barrier Material construct from rubber.
  • The barrier material’s tensile strength is 400 kg/cm and can also be arranged for your requirements.
  • Ring Net
  • The colors are Yellow and Black
  • For extreme situations, we can add Special high-tensile steel wire.
Log Barrier 300Log Barrier 400Log Barrier 500Log Barrier 600
Overall height300 mm400 mm500 mm600 mm
Freeboard150 mm175 mm200 mm250 mm
Draft150 mm225 mm300 mm350 mm
Section Length3 m / 6 m / 10 m3 m / 6 m / 10 m3 m / 6 m / 10 m3 m / 6 m / 10 m
Tensile Strength27000 kg27000 kg27000 kg27000 kg
Flotation MaterialHDPEHDPEHDPEHDPE
Flotation ColorYellow / Orange / RedYellow / Orange / RedYellow / Orange / RedYellow / Orange / Red
ConnectorGalvanized Steel ShackleGalvanized Steel ShackleGalvanized Steel ShackleGalvanized Steel Shackle
Debris Screen Material (Optional)Galvanized Debris Screen or Fabric Net
Debris Screen Height (Optional)0,5 m / 1 m0,5 m / 1 m0,5 m / 1 m0,5 m / 1 m
