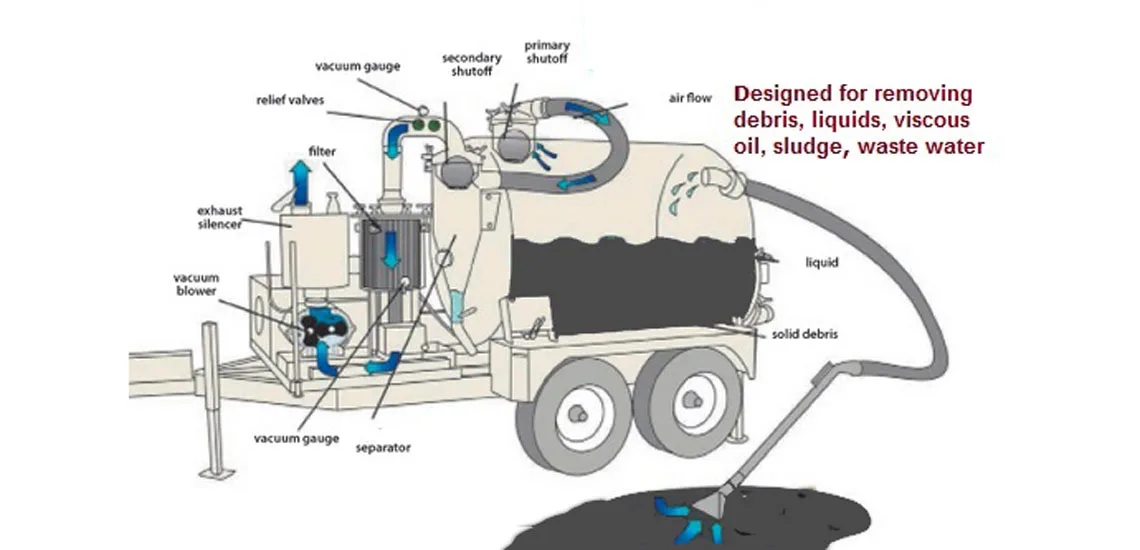

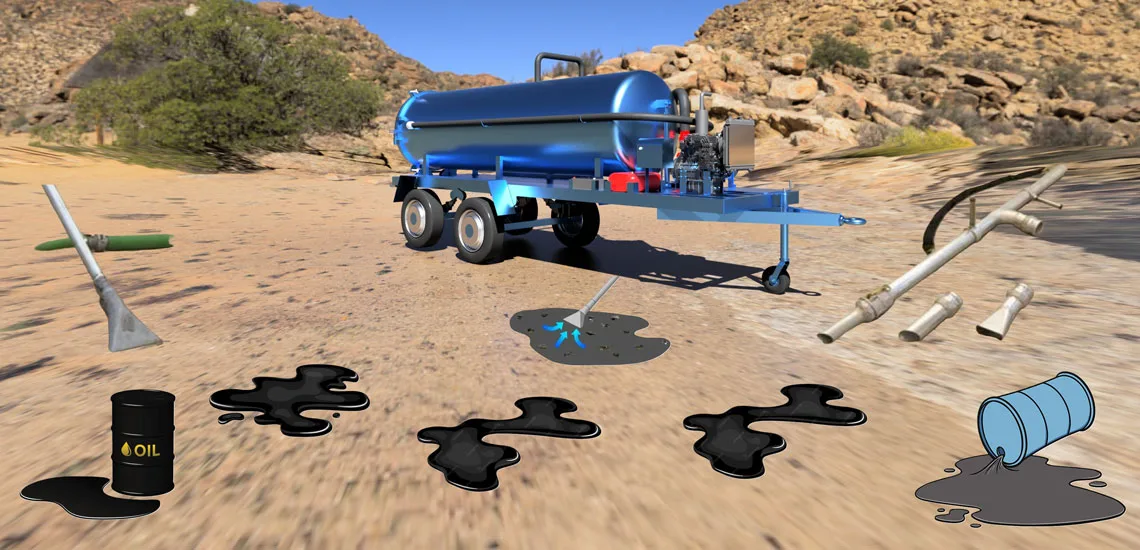

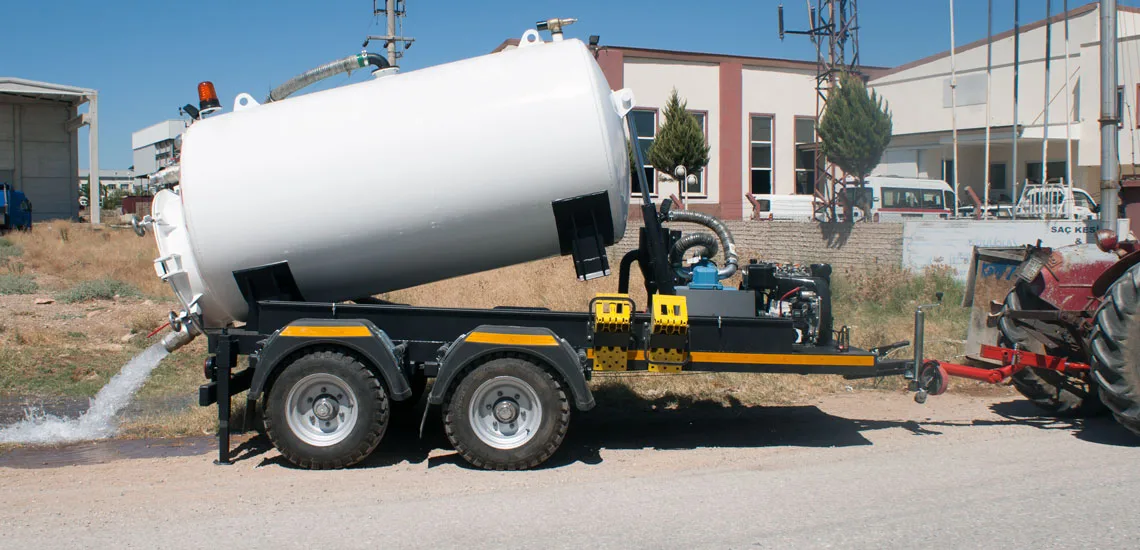

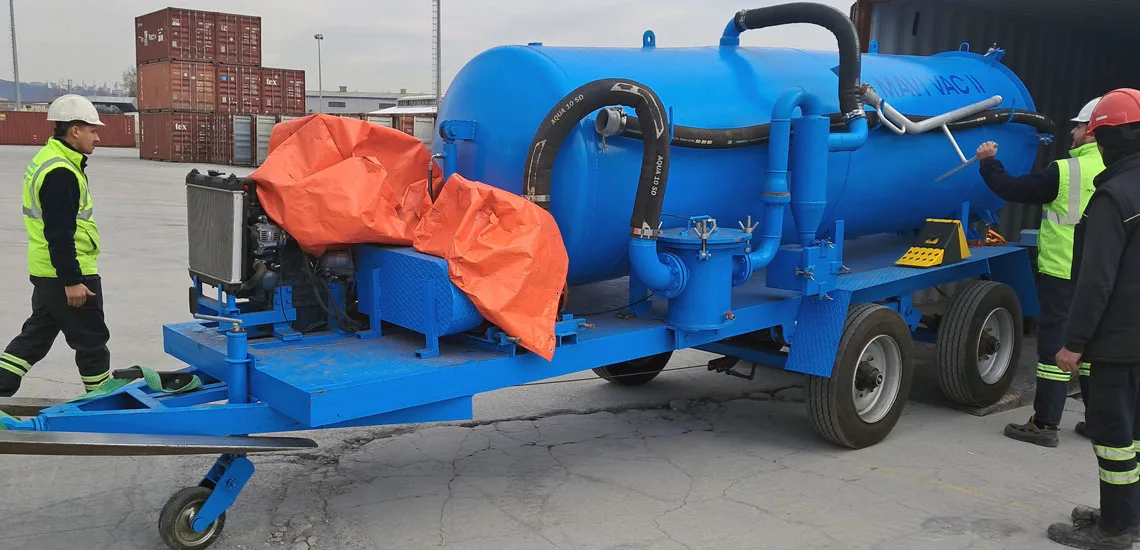

Mavi-Vac, Trailer Mounted Vacuum System, is designed to remove debris, viscous oil, liquids, sludge, and wastewater from beaches, land, or water. Trailer Mounted Vacuum System can operate with other suitable vacuum pumps. Trailer Mounted Vacuum System can typically recover; oils, liquids, sludge, wastewater, mud, sand, gravel Wood Chips Pellets, and powders.

Features

Transport and disposal of recovered oils/ liquids
Trailer Mounted Vacuum System is Suitable for use in remote areas.
Trailer Mounted Vacuum System is Ideal for long suction and hard-to-re-recovering spills operations.
Trailer Mounted Vacuum System is Less costly than vacuum trucks.
Trailer Vacuum System engineered to withstand arduous conditions in remote locations.
The Vacuum System will fit in standard shipping containers.
Vacuum System approved for highway towing.
Safety devices, including surge brakes for highway or off-road towing.
Heavy-duty suction wand.
1/4” steel tank with a 1000-gallon capacity
Solid welded full-length fenders
Primary shutoff on the tank
Vacuum pump fitted with exhaust silencer
Hydraulic dump
Diesel drive
500 mbar vacuum
Stabilizer jacks for the rear of the trailer
Fully opening rear door
Sandblasted and epoxy painted
150mm discharge valve
75mm suction wand
3 or 4-inch hose x 18m

Optional

Rear opening doors (36” or full)
Water tank (removable)
High-Pressure washer
Oil Skimmers
Transfer pumps
Cyclonic separator with filters
Vacuum hopper

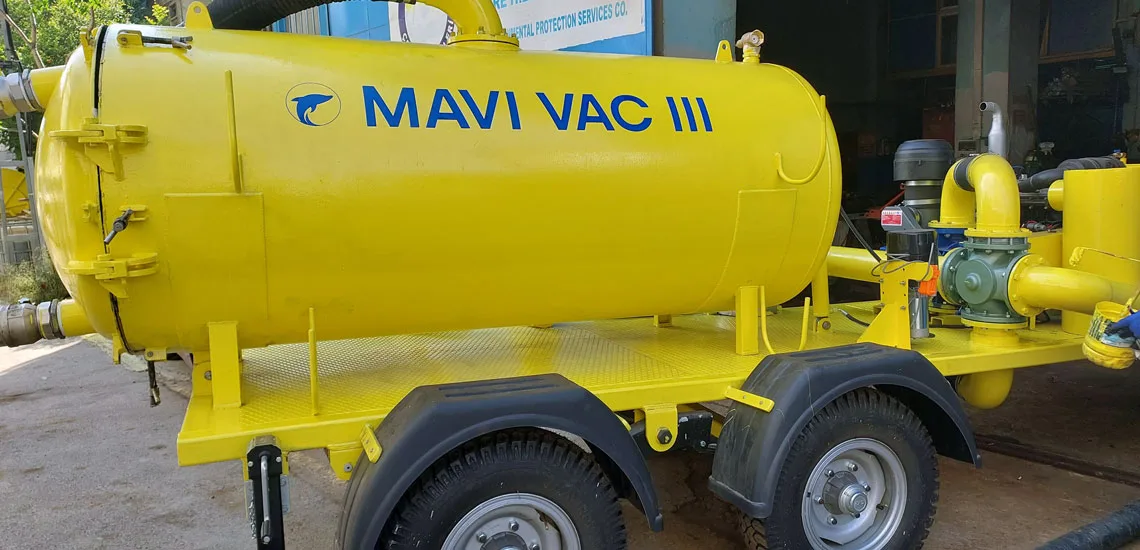

	Mavi Vac I	Mavi Vac II	Mavi Vac III
Waste Vacuum Tank Capacity	540 gallon ( 2.0 cbm ) - Standard 1000 gallon ( 3.7 cbm ) - Optional 1300 gallon ( 5 cbm ) - Optional	540 gallon ( 2.0 cbm ) - Standard 1000 gallon ( 3.7 cbm ) - Optional 1300 gallon ( 5 cbm ) - Optional	540 gallon ( 2.0 cbm ) - Standard 1000 gallon ( 3.7 cbm ) - Optional 1300 gallon ( 5 cbm ) - Optional
Engine	13 Hp Diesel Engine with electric start	25 Hp Diesel Engine with electric start	48 Hp Diesel Engine with electric start
Vacuum Pump	240 cfm - 400 m3/h	498 cfm - 846 m3/h	770 cfm - 1300 m3/h
Waste Vacuum Tank	6 mm steel tank and flanged vacuum head with 1x5” sight glass on rear door, full safety features includes primary shutoff on tank and vacuum relief valves, tank mounting rails mounted front and rear, sandblast and epoxy painted to white colour
Waste Vacuum Tank	Hydraulic dump - 36” or Fully opening rear door (Optional) Stabilizer jacks for rear of trailer
Axle	Tandem axles with rated at 7,250 kg with wide flotation tires for off-road and highway use with easy lube hubs and electric brakes on both axles including tongue mounted emergency breakaway chain. Axle fitted with suspension system
Towing	DOT approved safety chains and hooks (emergency breakaway), Trailer lights meet DOT and I.C.C regulations for highway towing, Hitch with 8” adjustment, Mud flaps installed on rear fenders to meet DOT requirements
Safety Devicces	Surge brakes for highway or off-road towing.
Fonders	Full welded solid fenders
Hydraulic	Operate auxiliary equipment such as skimmers, pumps and pressure washers.
Electrics	All electrical connections sealed and water proofed.
Accessories	Heavy-duty suction wand, suction hoses with camlock fittings mounted on the side running boards for ease of access – 18 m x 3” vacuum hoses and 6” camlock coupler /discharge valve
Dimensions	( 2.0cbm ) - 1.65 x 1.45 x 1.25 m / ( 3.7 cbm ) - 4.57 x 2.21 x 2.44 m / ( 5 cbm ) - 5.40 x 2.21 x 2.44 m
Weight	( 2.0cbm ) - 650 kg / ( 3.7 cbm ) - 1800 kg / ( 5 cbm ) - 2800 kg
