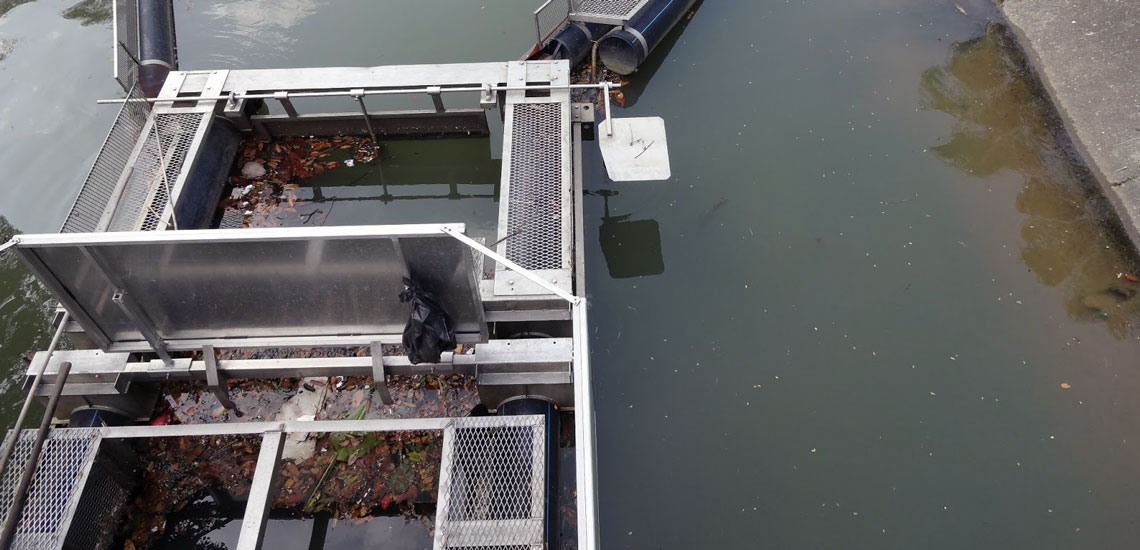

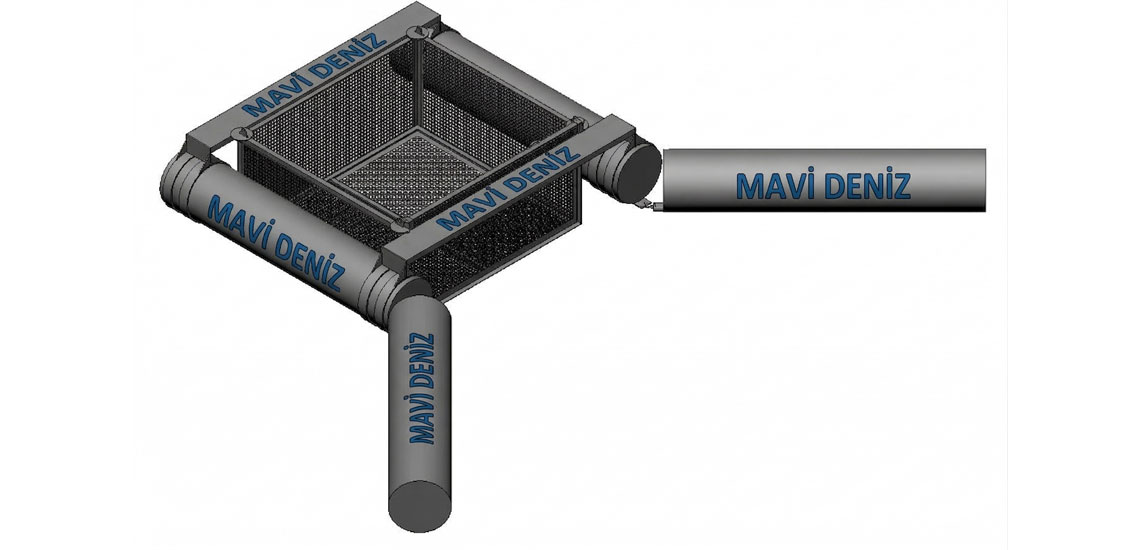

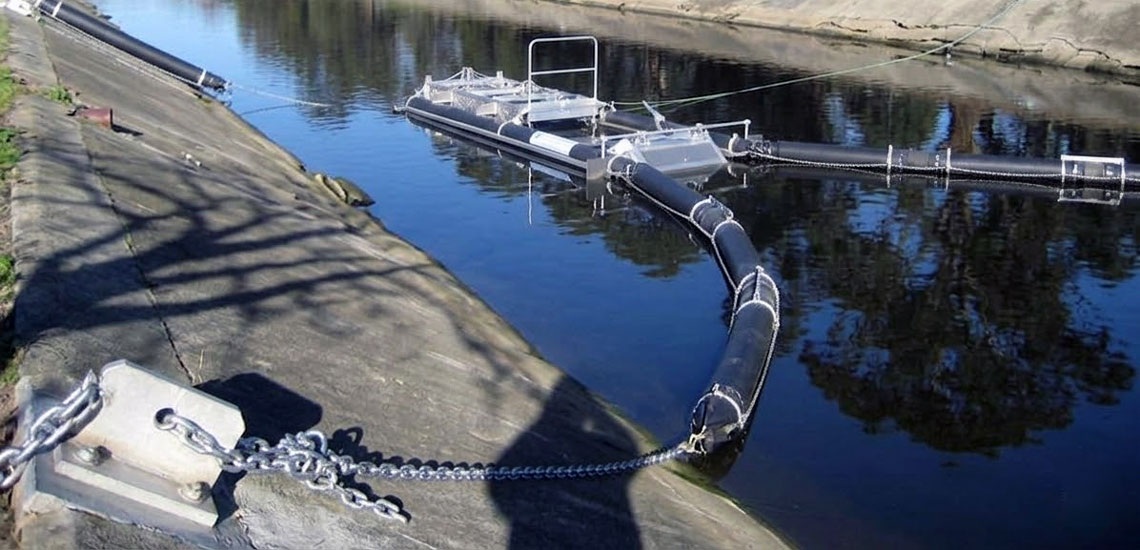

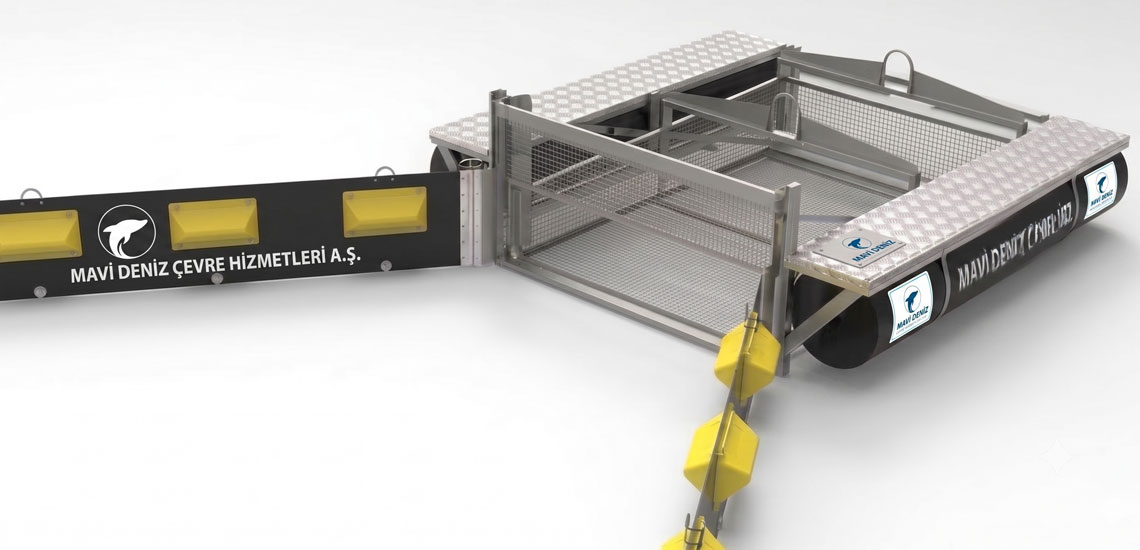

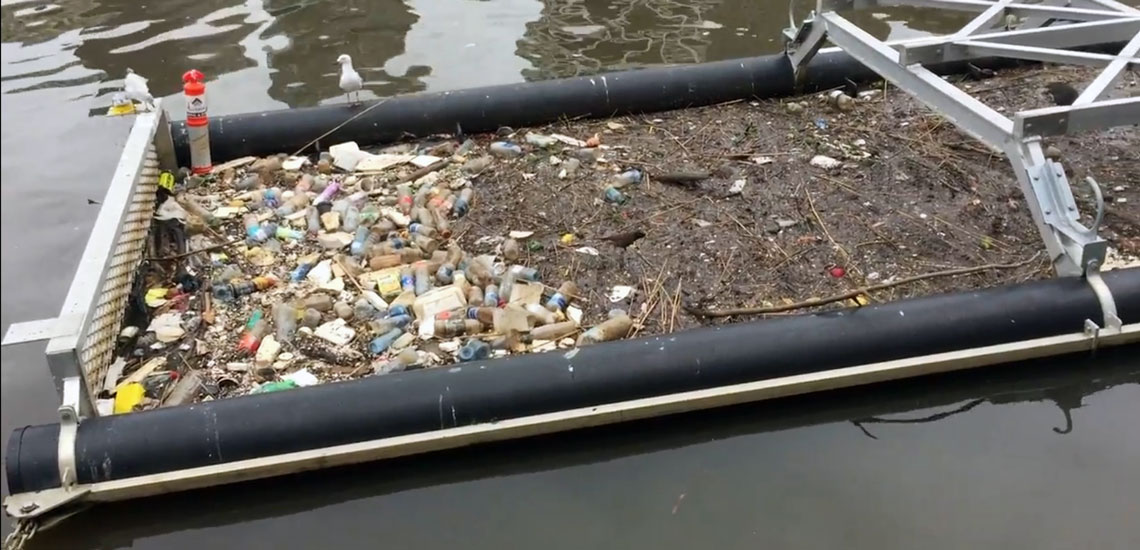

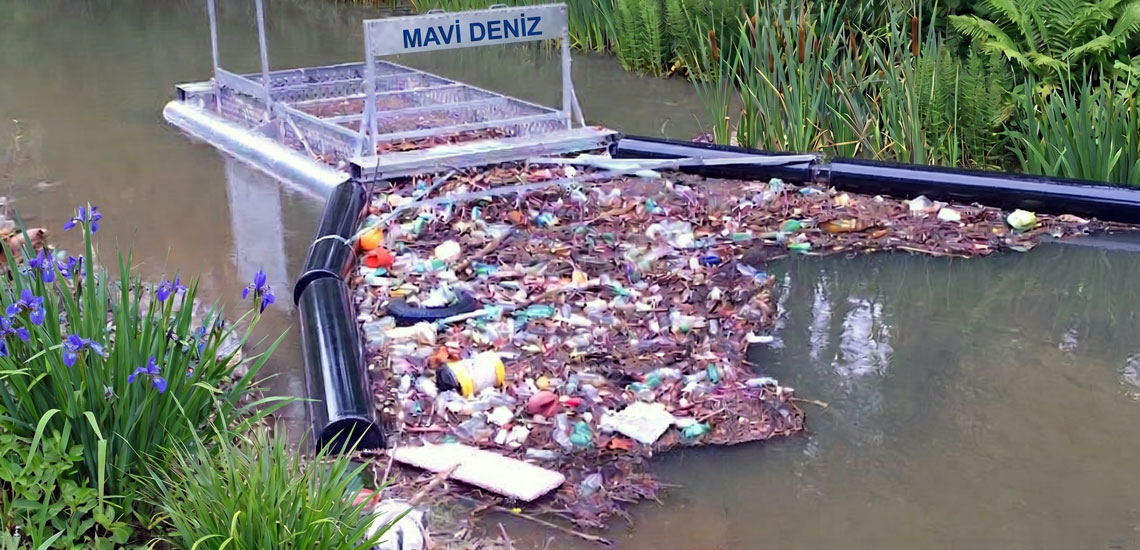

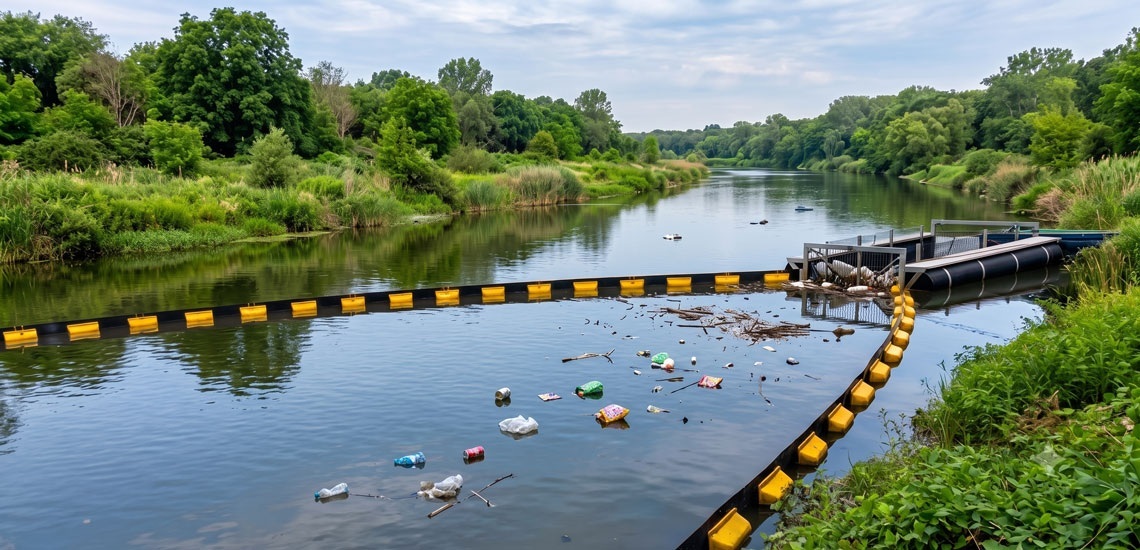

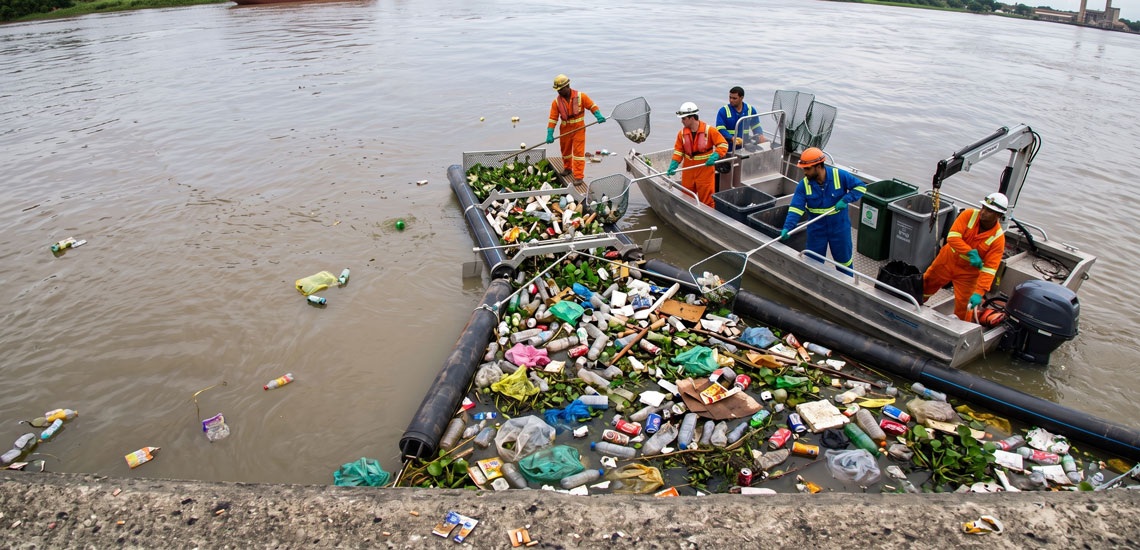

River Floating Litter Trap designed to work in any river, moving water, channel. Litter Trap consists of two floating booms, a floating frame, and a collection cage.

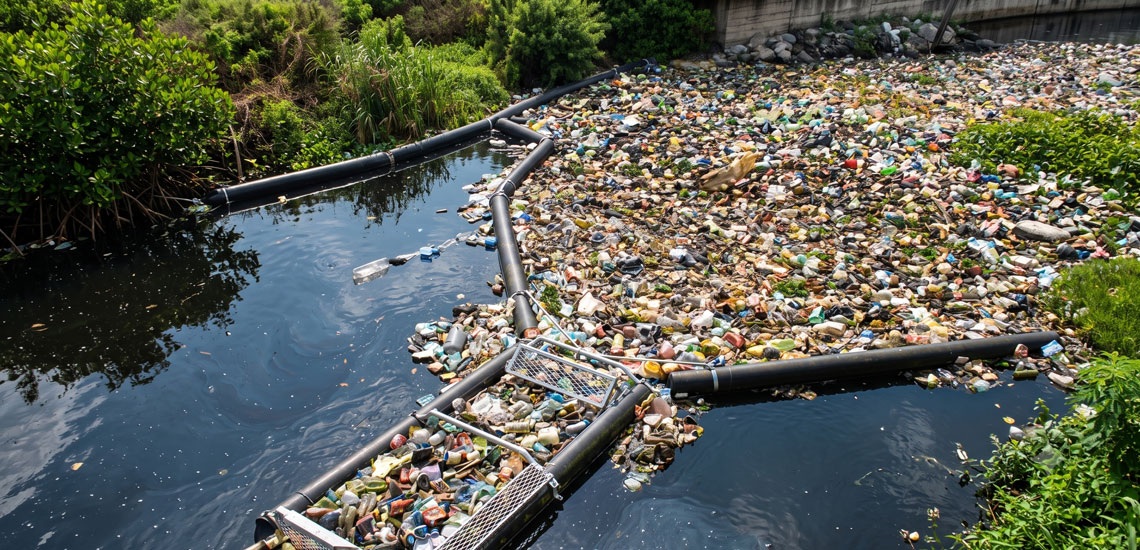

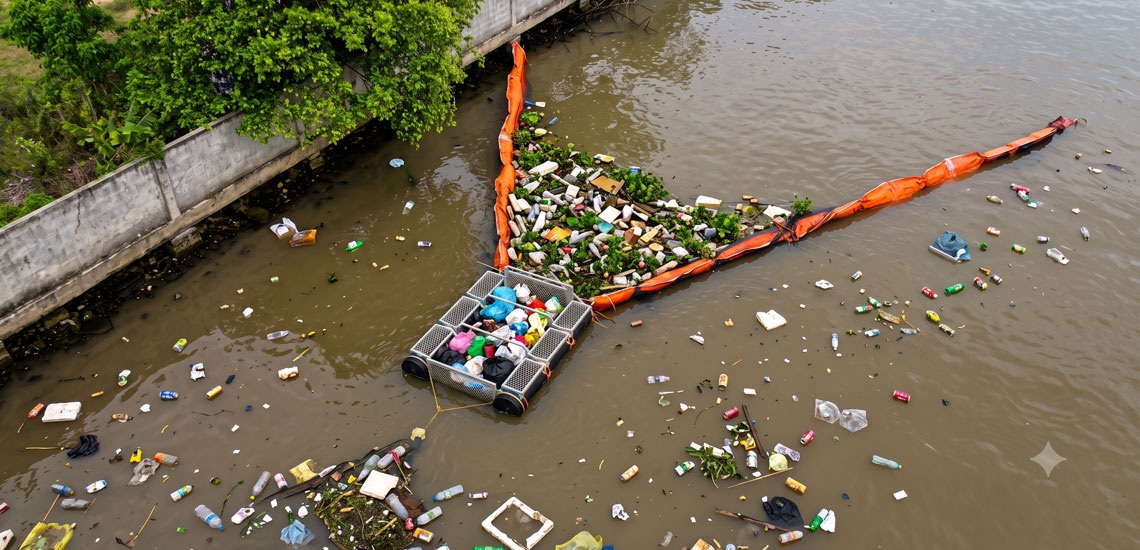

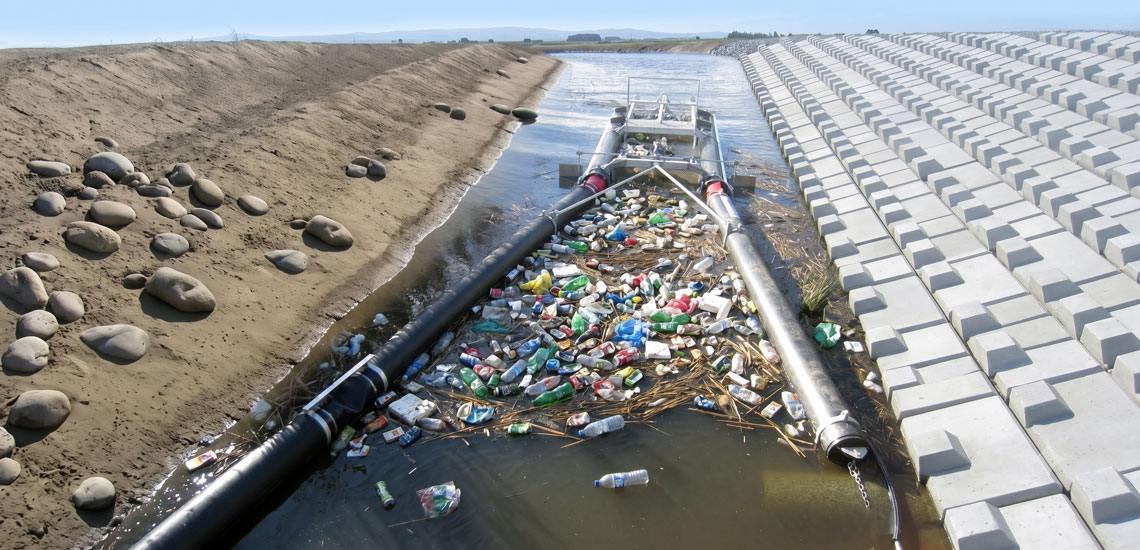

Especially rivers are the primary carrier of waste, litter, trash, plastic v.b. to our seas and ocean, which has become a severe environmental problem. From the rivers, more than 95 percent of the waste floats in the first meter below the surface, and most of the trash only uses the 5o cm below the surface and also, with the floating trash boom, debris can’t pass the litter trap from the river. That makes Litter traps collect the waste into the cage in rivers before reaching seas and oceans.

Features

  • Simple, easy to install and maintain, cost-effective
  • Small or larger plastics can collect
  • Rigid frame with floating booms
  • Custom size and specifications available for your requirements.
Floating Bin SmallFloating Bin MediumFloating Bin Large
Capacity4 m310 m315 m3
Pontoon MaterialHDPEHDPEHDPE
Garbage Basket MaterialAluminiumAluminiumAluminium
Garbage Bin DumpingManually Operate a Release Mechanism (Standard) | Self Dumping Mechanism (Optional)
BallastInternal steel channelInternal steel channelInternal steel channel
Walking Platform2 pcs2 pcs2 pcs
Lifting PointsYesYesYes
Trash Basket Dimension (m)2 x 22.4 x 3.73.6 x 6
Section Length (m)252525
