Shore conveyor designs to unload harvest between water, sea, shore, and land. Pier Conveyor designs to unload trash between sea, shore, and land over high places, seawall, or embankment places.

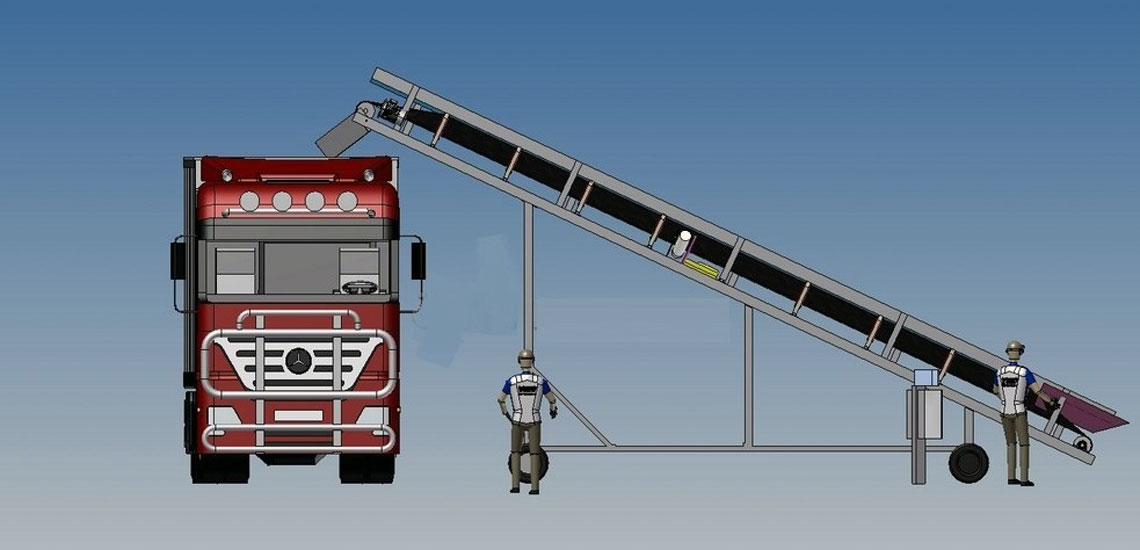

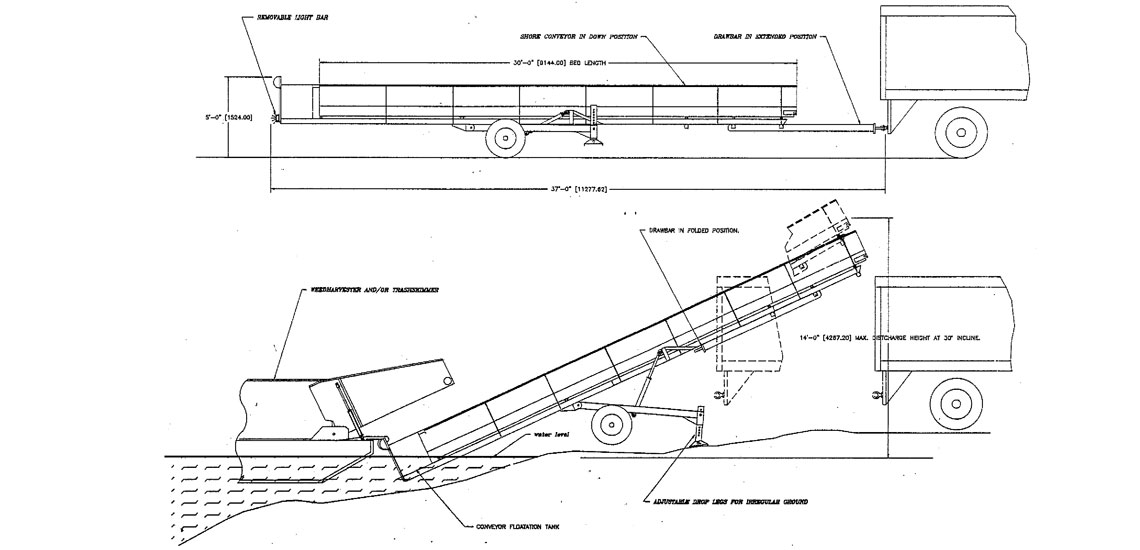

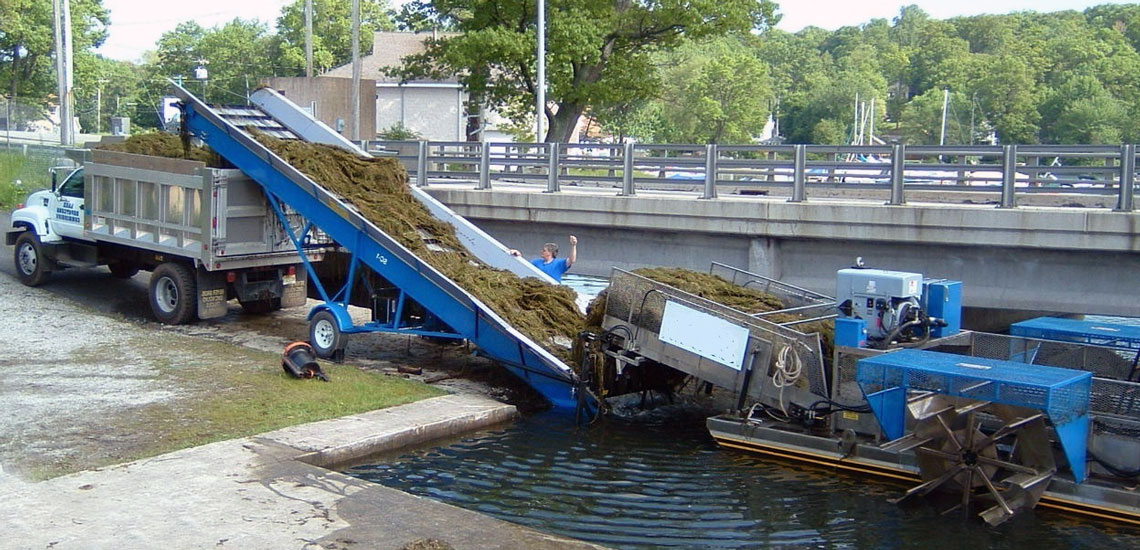

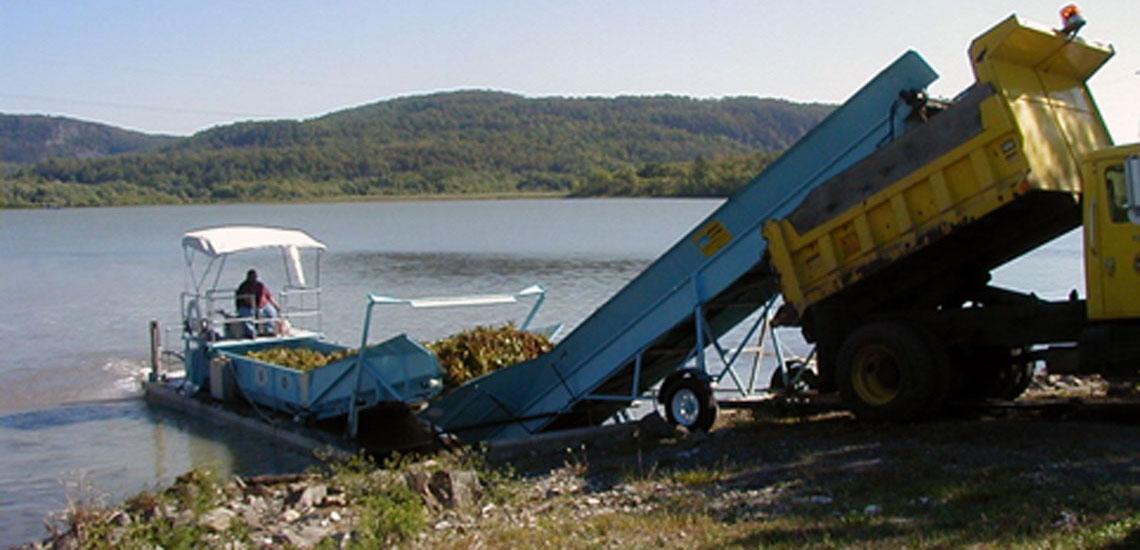

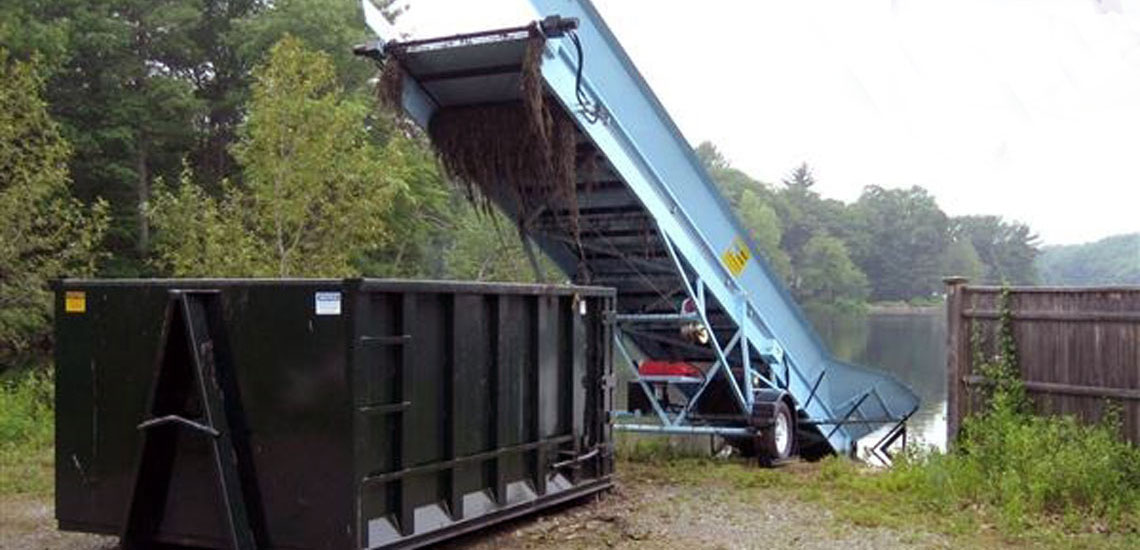

Shore Conveyor assembly for unloading weeds from the aquatic weed harvester or aquatic transport barge onto shore conveyor and also from the shore conveyor load up into a waiting dump truck or dumpster for disposal.

Pier Conveyor assembly for unloading trash from the trash skimmer or trash transport barge onto pier conveyor and also from the pier conveyor load up into a waiting dump truck or dumpster for disposal.

Features

  • Special connection couplings for Weed Harvester, transport barge, and trash skimmer.
  • Special connection couplings for shore mounting and shore conveyor assembly.
  • Fast unloading the trash skimmer, transport barge and loading the har­vested weeds onto a truck or in a pile
  • Second or more conveyor supported.
  • Wheels transportation available can easily be pulled by a pickup or tractor.
  • It is equipped with hydraulic, quick couplings to draw power from the harvester, transport barge, or trash skimmer as unloads.
  • Equipped with hydraulic power pack
  • Custom size and specifications available for your requirements.
Shore SmallShore MediumShore LargeShore XL
Duty - Transfer MaterialBioMass, Aquatic Weed, Trash, Litter, Garbage, Sargassum
Conveyor Belt Lenght8 m8 m9 m11 m
Conveyor Belt Width0,9 m1 m1,2 m1.5 m
Conveyor Belt Sidewall Height50 cm50 cm50 cm50 cm
Discharge Height4 m4 m4.5 m5,4 m
Shore Conveyor MaterialSteelSteelSteelSteel
Conveyor Belt MaterialHeavy Duty Steel Mesh (Standard) | Heavy Duty Galvanized Steel Mesh (Optional) | Heavy Duty Stainless Steel Mesh (Optional)
Conveyor Drive UnitHydraulic MotorsHydraulic MotorsHydraulic MotorsHydraulic Motors
Trailer Wheel SystemYesYesYesYes
Power Pack (Optional)13 HP - Built-In or Portable13 HP - Built-In or Portable13 HP - Built-In or Portable13 HP - Built-In or Portable
Wing (Optional)2 x Adjustable guide-wings for stationary harvesting
