Mavi Deniz Multi Oil Skimmer is designed to recover oil spills, oil, and oil emulsions with medium to high viscosity ranging from 5 – 50 m3/h from floating oil on the water under calm to rough weather conditions. Multi Oil Skimmer is a rotating oleophilic skimmer, one of the most common mechanical recovery devices. Oil Skimmer Recovery is based on oil adhesion to a rotating skimmer surface. (Brush + Disc + Drum) The rotating surface lifts the oil from the water to an oil removal scrapper.

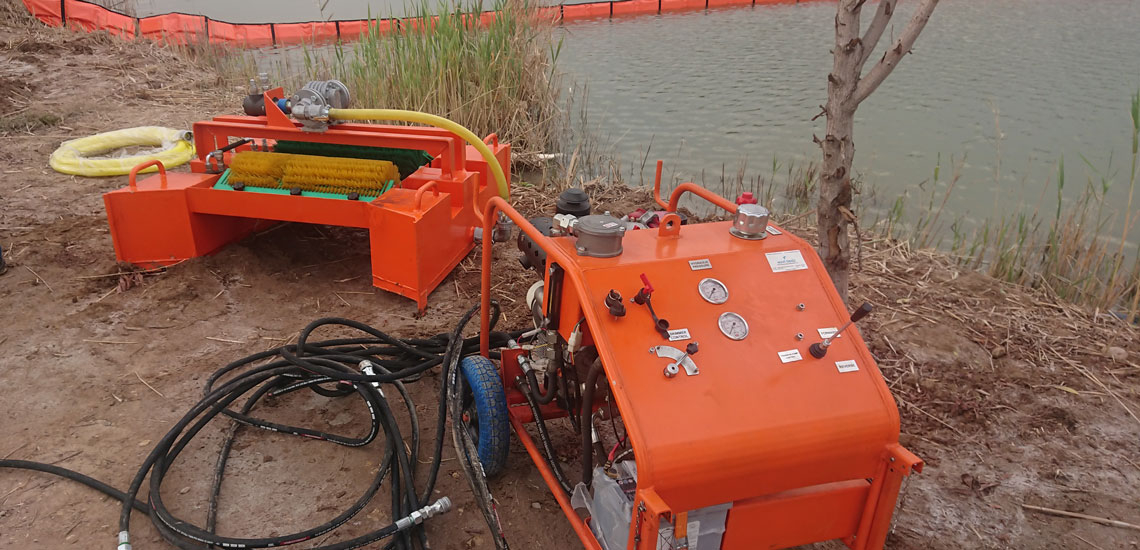

The Multi Oil Skimmer System Standard units have a skimmer head, pump unit, hydraulic and transfer hoses, and hydraulic power pack. Hydraulic, pneumatic, and diesel-electric motors can drive them.
The Multi Skimmer System can make remote operation possible. With the radio remote control system + Continuous self-floating umbilical + hydraulic thrusters, Multi Skimmer gets up to 150 meters of operational motion capability.
Multi Oil Skimmer – Skimmer Head Type
- Disc Skimmer
The discs rotated down through the oil slick, and the oil collected on the discs was removed using scrapers in between the discs. Oil flowed from the discs, down the scrapers, and into a tank, where a pump offloaded the oil to collection tanks. - Drum Skimmer
The drums rotated down through the oil slick, and the oil collected on the drums was removed using scrapers. Oil flowed from the wipers into a tank, where a pump offloaded the oil to collection tanks.
- Brush Skimmer

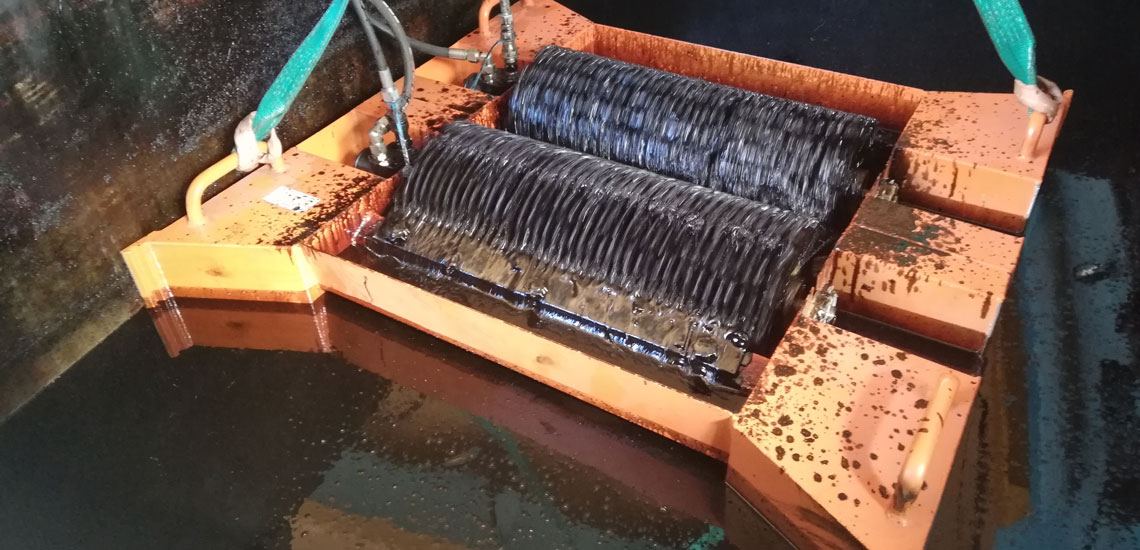

The brushes rotated down through the oil slick, the oil collected on the discs was removed using scrapers, and the oil flowed into a tank. A pump offloaded the oil up to collection tanks. - Grooved Skimmer
The grooved drums rotated through the oil slick, and the oil collected on the drums was removed using scrapers. Oil flowed from the wipers into a tank, where a pump offloaded the oil to collection tanks.
Multi Oil Skimmer – Oil Skimming Applications are divided into three groups;
- Inland Waters + Coastal Waters Oil Skimming
Middle or low-capacity floating oil skimmer that skims and separates oil from inland waters and coastal water - Industrial Oil Skimming
Middle or low-capacity floating oil skimmer that skims and separates within various industrial settings ranging from manufacturing and processing activities to wastewater management in hazardous and corrosive environments such as
(Wastewater + Food processing + Refineries + Steel Mills – Scale pits + Vegetable Oil Processing Plant+ Chemical Plant + Oil Processing)
Features
- Ideal to use in Oil Spill operations in the ocean and protected waters.
- ATEX Zone 1
- Ideal for Oil Spill operations in rivers, lakes, and protected waters, for use with Vac Trucks, removing oil from industrial tanks, evaporation pits, and drilling platform wells.
- High-quality equipment for skimming in industrial environments
- 3 in 1 Skimmer head for use in all conditions (Disc Oil Skimmer, Drum, Oil Skimmer, Brush Oil Skimmer)
- High efficiency, up to 98% recovery
- Rugged all-aluminum construction, powder-coated
- Low cost with easy operation
- Lightweight and easy to carry
- Diesel, gas, pneumatic, or electric models are available
- Continuous self-floating umbilical up to 80 meters
- Mobile or Trailer-mounted
- Optional diesel, gas, or electric hydraulic power packs, pneumatic or electrical power
