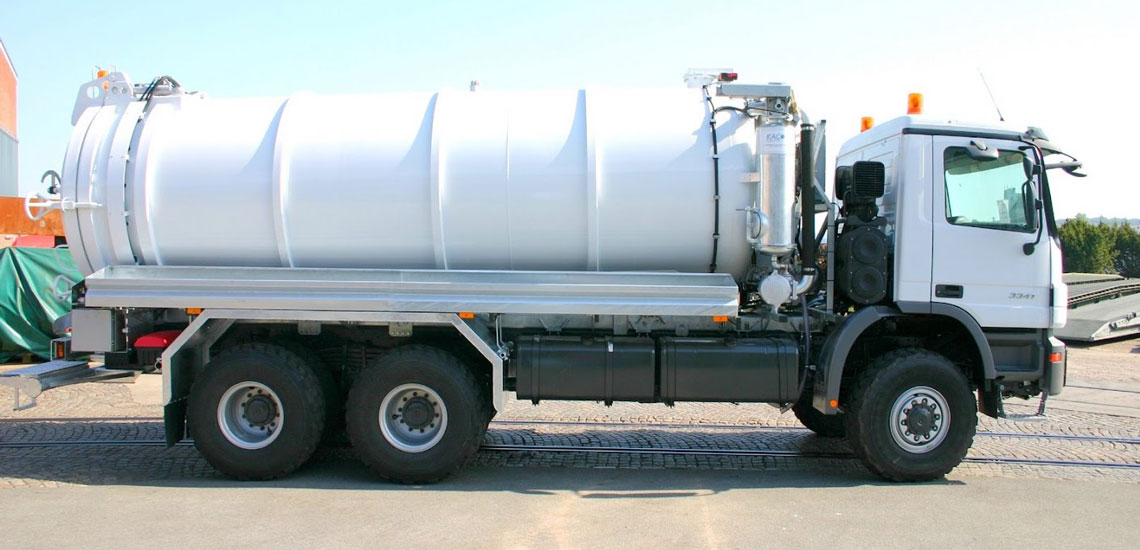

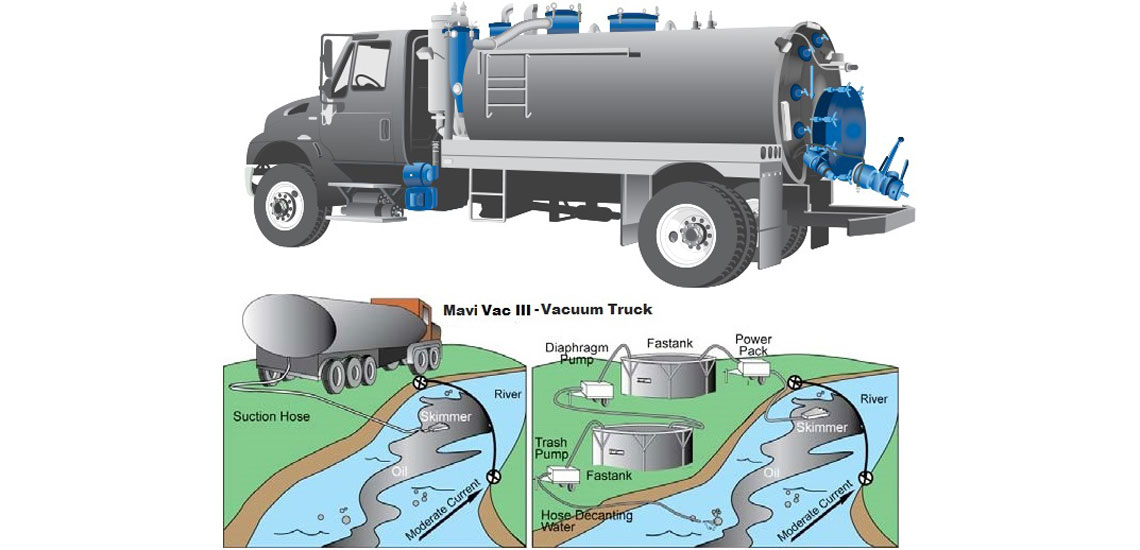

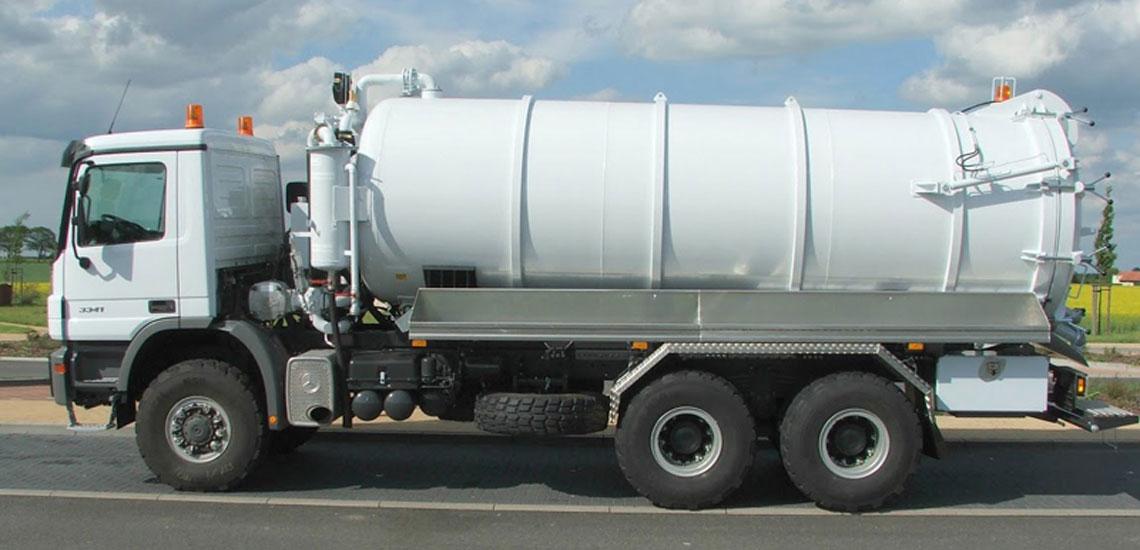

The Mavi Deniz vacuum truck is a specialized vehicle featuring a robust vacuum pump and an expansive storage tank intended for the suction and transportation of diverse materials, both liquid and solid. Truck-Mounted Vacuum System (Oil Spill Recovery & Mud & Sludge & Sewage). These systems are crucial for various industrial, municipal, and environmental applications.

Particular functions of a vacuum truck

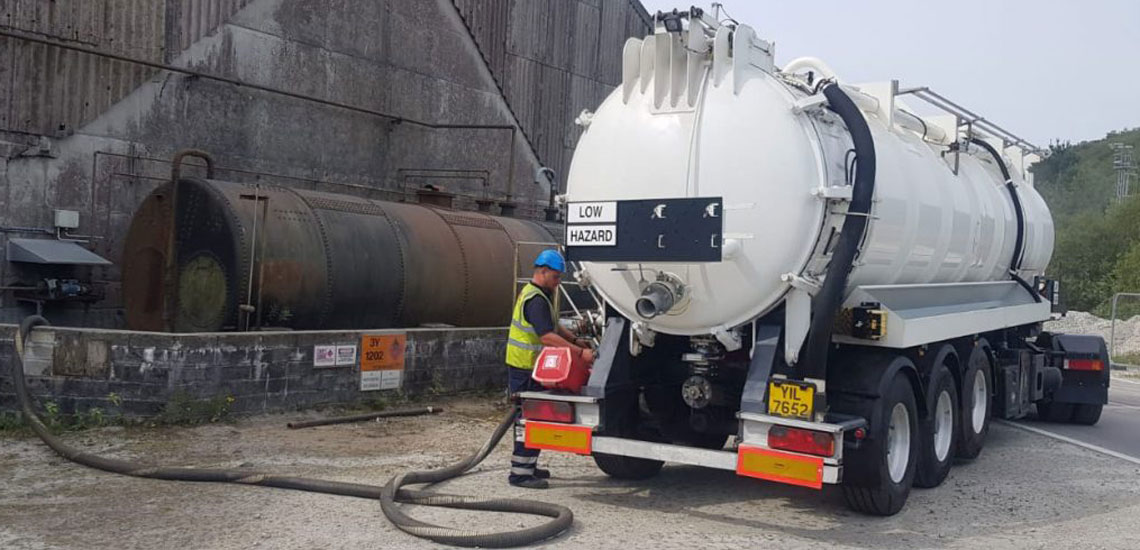

  • Liquid Vacuum (Septic Trucks/Tankers): Primarily utilized for the extraction and transportation of liquids, sludges, and slurries from septic tanks, catch basins, sumps, oil/water separators, and spill sites. Their tanks frequently exhibit corrosion resistance.
  • Dry Vacuum (Industrial Vacuum Loaders/Air Movers): Designed to handle dry materials including soil, sand, gravel, fly ash, grains, powders, and industrial waste. They integrate robust filtration systems to protect the pump from abrasive dry particles.
  • Combination Vacuum (Combo Units/Sewer Cleaners): Multifunctional devices that amalgamate high-pressure water jetting with powerful vacuuming functionalities. They can remove obstructions and debris using water jets and subsequently vacuum the resulting slurry. Common applications include the maintenance of sewer lines, storm drains, and catch basins.
  • Hydro excavation (hydrovacs) is engineered for non-destructive digging. They utilize high-pressure water to liquefy or disintegrate soil and other materials, subsequently vacuuming the resulting slurry immediately. This method is preferred for the safe revelation of underground utilities (pipes, cables) without causing harm.
  • Vacuum tankers are larger versions of liquid vacuum trucks, generally utilized for increased capacity or more intricate liquid waste applications.
  • Industrial Vacuum Cleaner  A specialized category of vehicles engineered for intensive industrial waste extraction, environmental remediation, and bulk material recovery in challenging environments such as power plants, chemical facilities, and manufacturing sites.

Common Utilizations and Applications
Vacuum trucks are indispensable in numerous industries and municipal services:

  • Waste Management:

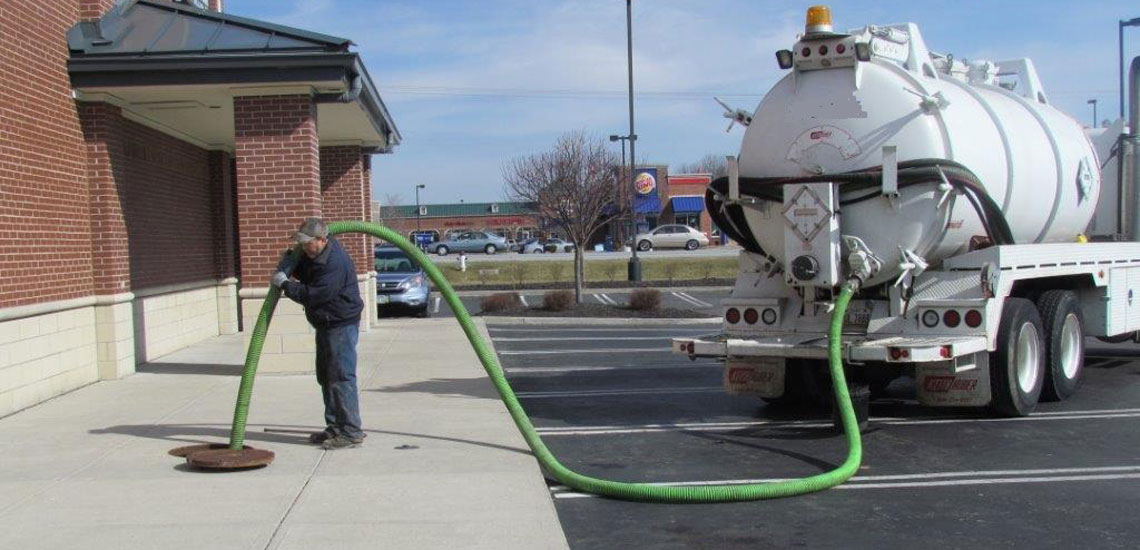

    Maintenance of sewer lines and septic tanks (clearing blockages, extracting sludge)
    Cleaning of grease traps
    Collection and transportation of industrial waste, hazardous substances, and chemicals

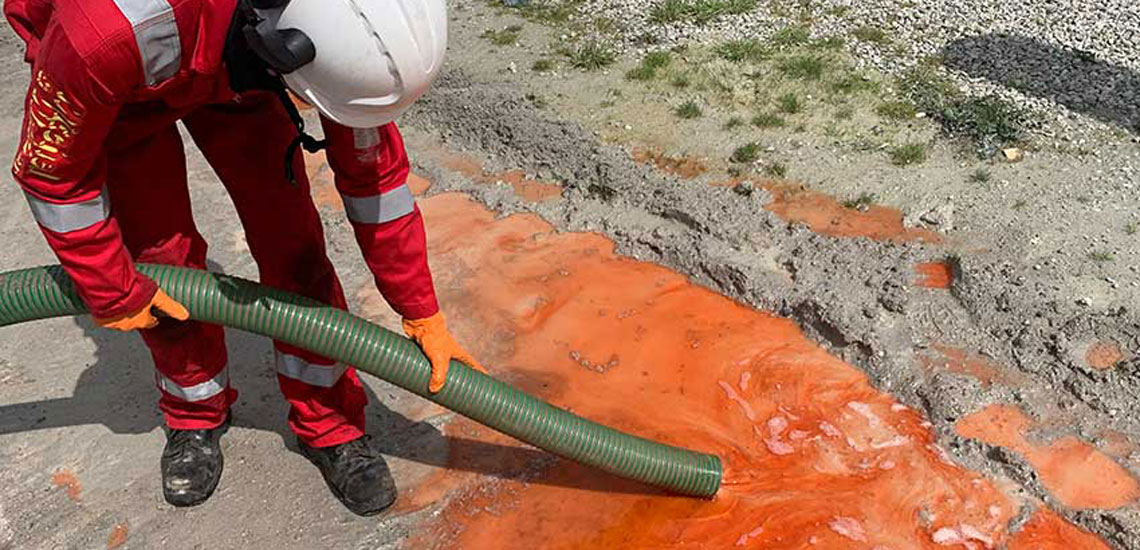

    Containment of spills and environmental remediation (oil and chemical spills)
  • Construction:
    Hydro excavation for the safe exposure of underground utilities (potholing, trenching)
    Elimination of detritus from construction sites (mud, slurry, concrete remnants)
    Conducting extensive excavations in remote locations
  • Industrial Sanitation:
    Disinfecting tanks, sumps, pits, and vessels in industrial facilities
    Eradicating sludge and byproducts from manufacturing plants, refineries, and chemical facilities.
    Eliminating ash and detritus in power generation facilities and mining operations
  • Local Government Services:
    Maintenance of storm drains, catch basins, and sewage systems
    Preserving public infrastructure
    Flood remediation and water extraction
  • Ecological:
    Response and remediation for spills (oil, chemicals, etc.).
    Waste management and logistics.
    Desludging of lagoons and ponds.
  • Petroleum and Natural Gas:
    Management of drilling mud and fluids.
    Decontamination of tanks.
    Pipeline maintenance.

Principal Advantages

  • Efficiency: Swift and effective extraction and conveyance of materials, minimizing downtime.
  • Safety: Reduces worker exposure to hazardous substances and mitigates spills, thereby improving safety at job sites.
  • Non-Destructive Excavation: Hydrovacs provide a secure alternative to conventional excavation techniques, safeguarding underground utilities from damage.
  • Environmental Protection: Facilitates the effective management and disposal of pollutants and waste, thereby averting environmental contamination.
-Mavi Truck Vac IMavi Truck Vac IIMavi Truck Vac IIIMavi Truck Vac IVMavi Truck Vac V
Power Unit & Blower
Max Vacuum % (inHG)94% (28”)94% (28”)95% (28,5”)95% (28,5”)95% (28,5”)
Blower Displacement 369 cfm (Standard)
 420 or 486 cfm (Optional)
486 cfm (Standard)
 540 or 668 cfm (Optional)
830 cfm (Standard)
1000 or 1300 cfm (Optional)
1500 cfm (Standard)
2413 or 3650 cfm (Optional)
3800 cfm (Standard)
4100 or 5300 cfm (Optional)
Pump DrivePTO, Auxiliary Engine or Hydraulic
Fuel tank Capacity50 lt (Standard) - Higher Capacity ( Optional )
Fuel Tank MaterialSteel (Optional ) - Aluminium (Optional )
Suction Hose2" or 3"3" or 4"3" or 4"4" or 6" or 8"4" or 6" or 8"
Debris Tank
Tank Capacity Standard
Tank Capacity Optional
4000 L
4250 L - 6000 L
6000 L
6250 L - 8000 L
8000 L
8250 L - 10.000 L
10.000 L
10250 L - 20.000 L
20.000 L
MaterialSteel (Standard ) or Aluminium (Optional ) or HDPE (Optional)
Dump DoorFixed Tank with Manhole Opening (Standard) Hydraulic Dump (Optional) or Fully Opening Rear Door (Optional)
Sight GlassPrimary 1 x Rear door (Standard) - Secondary (Optional)
CoatingExterior coainting (Standard) - Internal Coating (Optional)
Remote ControlOpen - Close door, Up & down lowers tank (Optional)
Water System
Tank Capacity200 / 300 / 500 / 1000 Gallon | 250 / 500 / 1000 / 2000 L - (Optional)
Tank MaterialPE (Optional) - Steel (Optional ) - Aluminium (Optional )
CabinFully enclosed -Tarpaulin (Optional) - Fully enclosed, Insulated, Noise reduction - Steel or Aluminium (Optional)
High Pressure SystemOptional
Pressure Washer (max)240 bar (Optional)
Pressure Hose Reel24 mt (Optional)
Pressure Pump Flow24 lt/min (Optional)
Water HeaterFor frozen ground and clay, and to aid in cleaning applications. (Optional)
Remote ControlControl Panel (Standard) - Wireless Radio Remote Control (Optional)
Filtration - Valve
Shut off ValvePrimary Liquid level float ball (Standard) - Secondary Shut off valve (Optional)

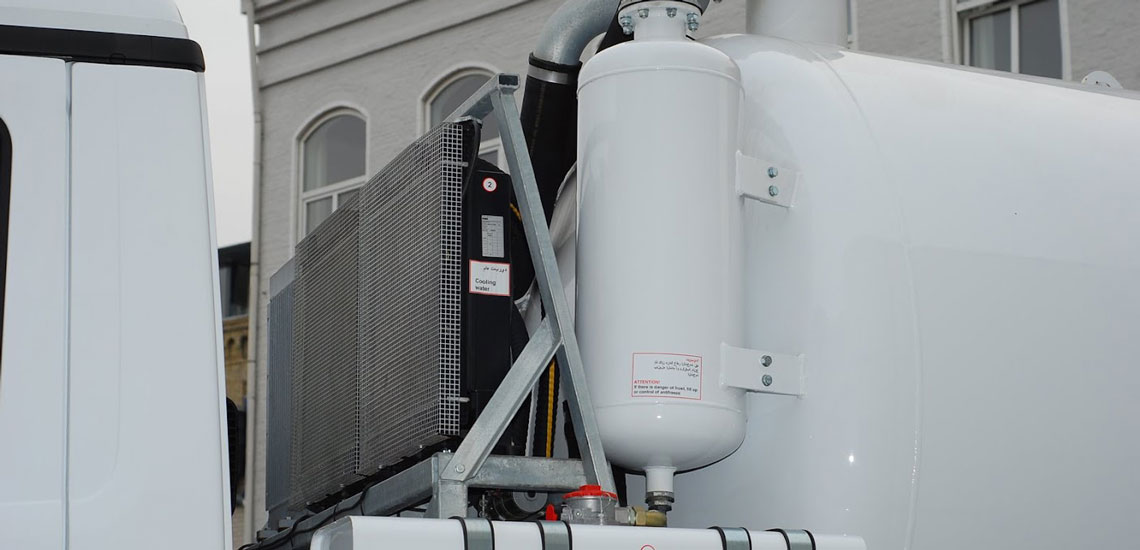

Cycolne ValvePrimary Cyclone Filter (Standard) - Secondary Cyclone Filter (Optional)
Mud Filter 1 x Mud Box (Standard)
Bag House FilterWashable Polyester (Optional) - Polypropylene(Optional) - HEPA (Optional)
Bag Filter CleanerAutomatic or Semi Automatic ( Pulse + Vibration Technology ) Optional
Silencer FilterOptional
Safety1 x Pressure Release Valve (Standard) - Vacuum Relief Valve (Standard)
Water Recycling SystemWater filtration to 5 micron particle sizes (Optional)
Coalescing PlateOleophilic Coalescing Plate Package (Optional)
Disc SkimmerOil Disc Skimmer Package (Optional)
Oil SeperatorOil Absorption Skimmer Filter (Optional)
Recycling PumpAutomatic Discharge Pump System (Optional)
Treyler - Portable
MaterialHeavy duty tubular steel welded trailer
Suge BrakeSurge brakes for highway or off-road towing. (Optional)
Axle With BrakeOptional
Rear BumperOptional
AxleUp to 2 axles with rated up to 10 tonne legal limit
TiresWide flotation tires for off-road and highway use with easy lube hubs
Rubber TrackAll terrain conditions - Rubber Truck package (Optional)
Skid MountedSkid-mounted package (Optional)
Boom Package
Boom Hose2" or 3"3" or 4"3" or 4"6" or 8"6" or 8"
CapacityRotate 270 degree extend to 4.3 mt (Standard) Rotate 270 degree extend up to 16,5 mt (Optional)
Boom operationManual rotation with hydraulic up & down (Standard) - Remote Control (Optional)
Electrics
All electrical connections sealed and water proofed.
Electrical System12v12v12v12v12v
Ancillary Items
Ancillary itemsDrum repair putty, dispersant / degreaser, safety torch & barrier tape. (Optional)
Disposal itemsDisposal bags, Hazspill drum / waste receptacle, rope. Spill berm / bund and Mini mobile Incinerator. (Optional)
PPE-itemsChemical gloves, disposable overalls, coveralls, dust and chemical masks, goggles & safety glasses, portable eyewash units and First aid kits (Optional)
Clean Up Items
Spills on land itemsClean up items including anti-static shovels, metal shovels, brooms, rakes. Oil and fuel or Hazchem absorbent pads, rolls, pillows, particulate and mini booms.
Spills on water itemsOil and fuel or Hazchem absorbent pads, rolls, pillows, particulate, mini booms and marine oil booms. Anchor sets with buoys and ropes. Oil Skimmer with transfer pump and power pack.
