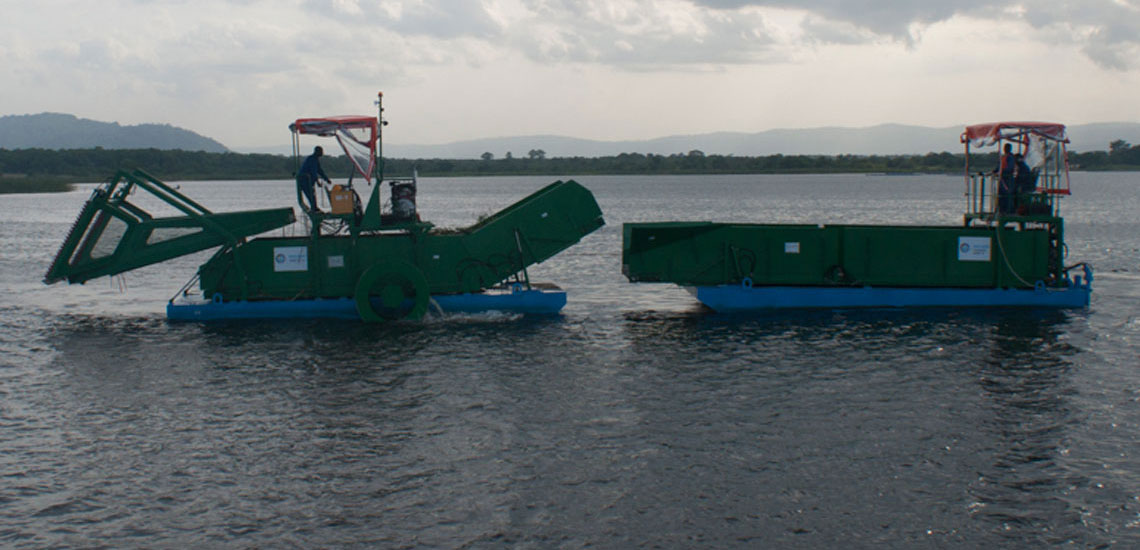

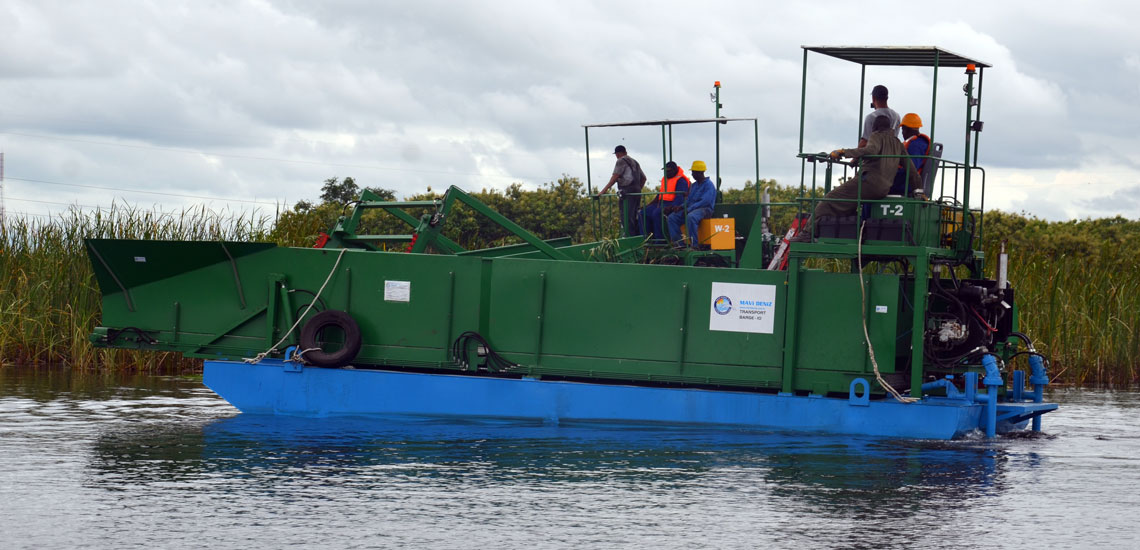

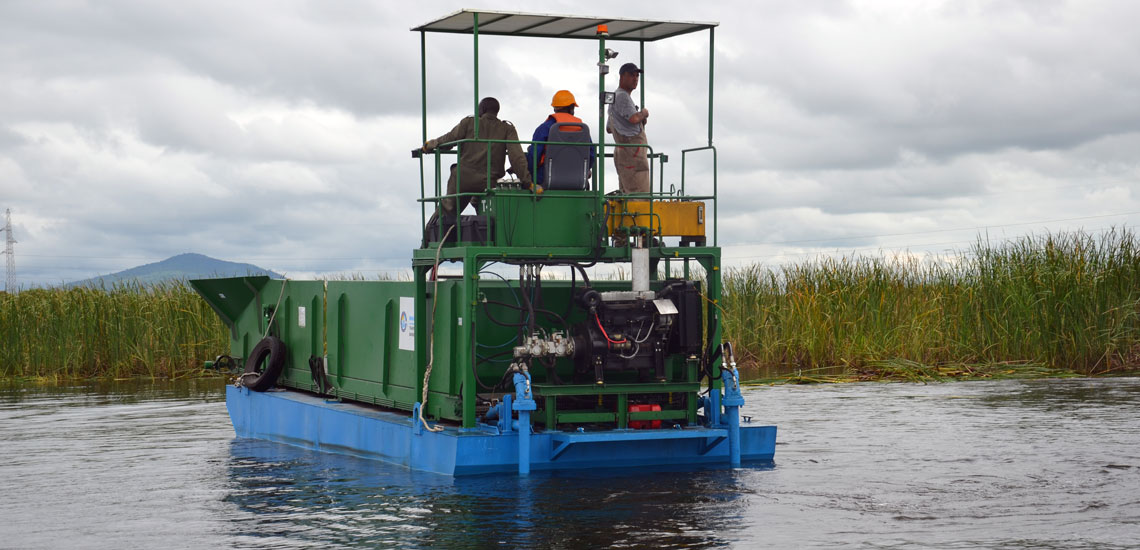

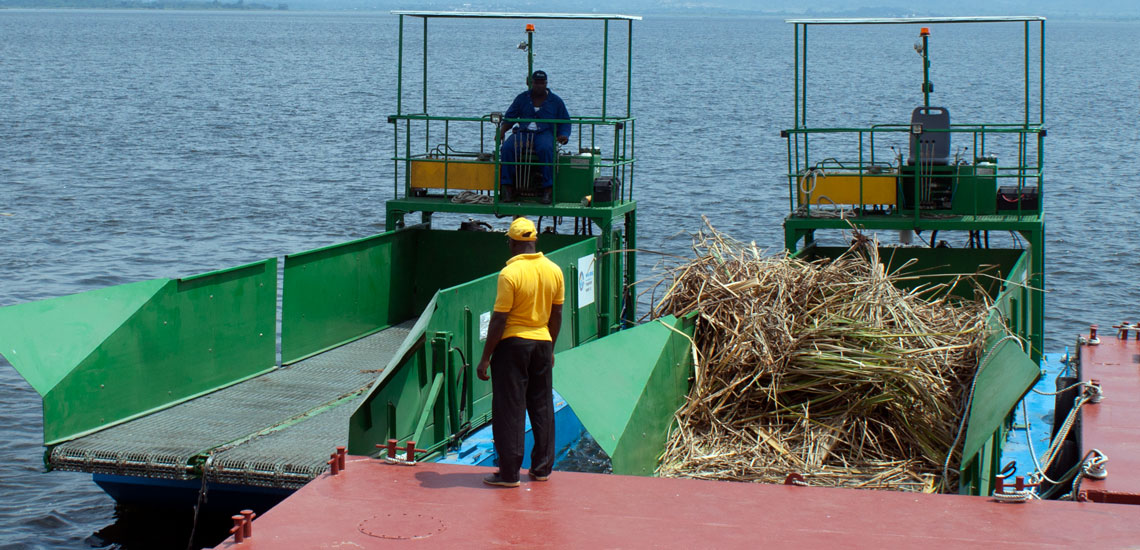

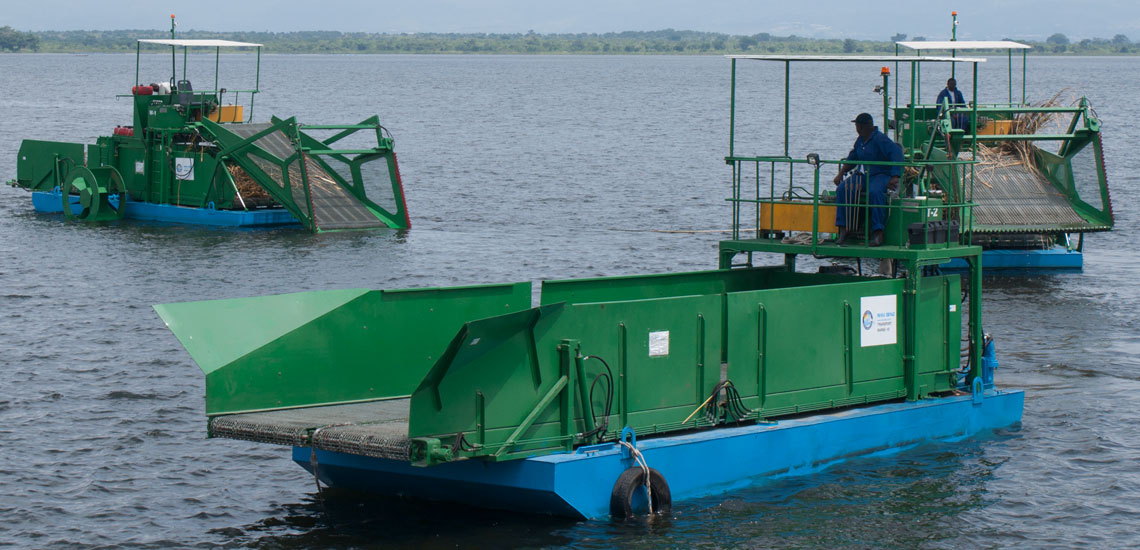

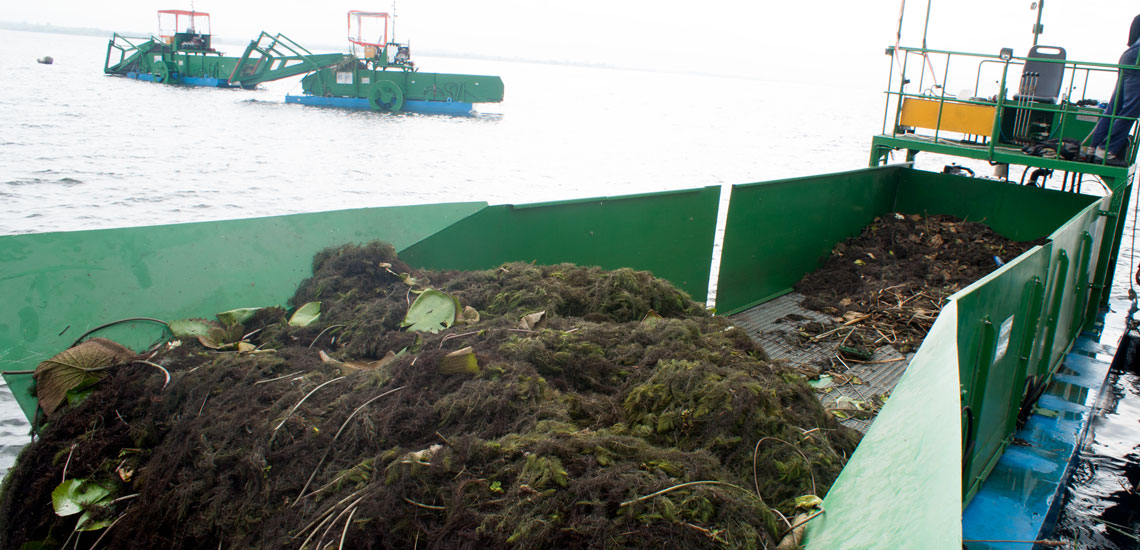

Aquatic Weed Transport Barge designed for Trash, Weed, Debris, and solid removal to transfer from water to shore. Aquatic Weed Transport Barge is necessary for projects with few unloading sites or far away places, with the barge of carriage time, and the money stays in your pocket. Weed harvesters can continue working without wasting time. Weed Transport Barge load or unload everything. Transfer weed loads to shore, increasing the harvesting efficiency.

International Maritime Organization announced a strategy to reduce greenhouse gas (GHG) emissions to zero by the end of this century, and marine environmental regulations have been tightened worldwide. The implementation of emission control areas has begun to affect vessel operations. Mavi Deniz has successfully started new emission control regulations by developing dual-fuel solutions and cleaner green power technologies. Mavi Deniz’s Green Power Options; Solar Energy System, Battery Power System, Hydrogen Fuel Cell System, and LPG System can fully integrate into Aquatic Weed Transport Barge, including deck equipment and propulsion system.

Aquatic Weed Transport Barge Green Power Options

  • Powered by Solar Energy System
  • Powered by Battery Power System
  • Powered by Hydrogen Fuel Cell System
  • Powered by LPG System

Features

  • Self-Loading and Unloading Supply and Support Vessel.
  • Heavy Duty Hull with Reinforced Bow and Stern
  • Trash Skimmers, River cleaner, Lake Cleaner, Marina Cleaner
  • Adaption to other Makes of Harvesters and Skimmer Boats Available as Factory Customization.
  • 360 Degree view over Control Bridge
  • Fingertip Hydraulic Controls.
  • High maneuverability capacity with Twin Propulsion system
  • Stainless steel Hydraulic Tubes and Fasteners.

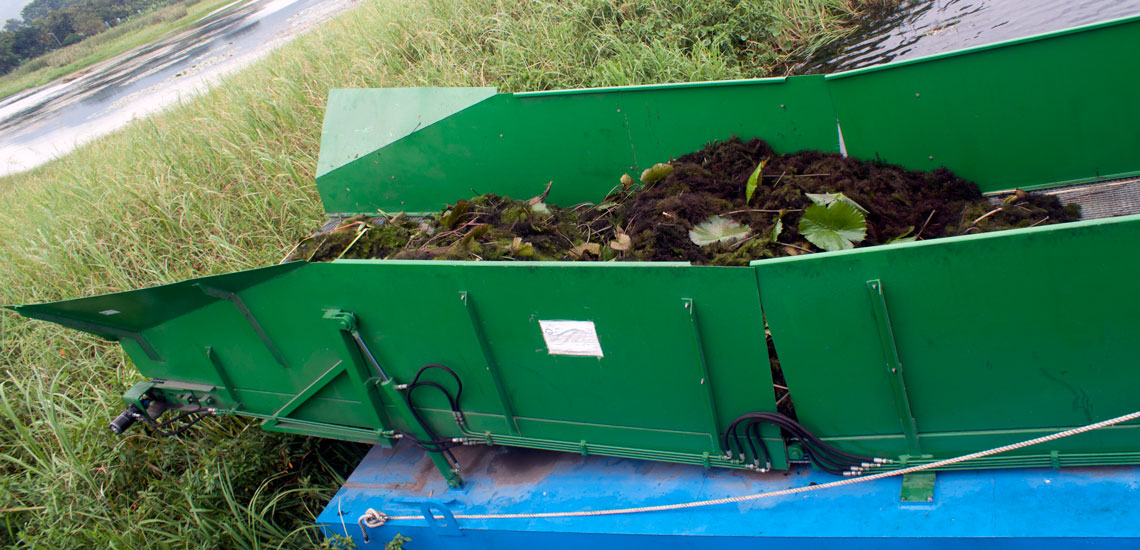

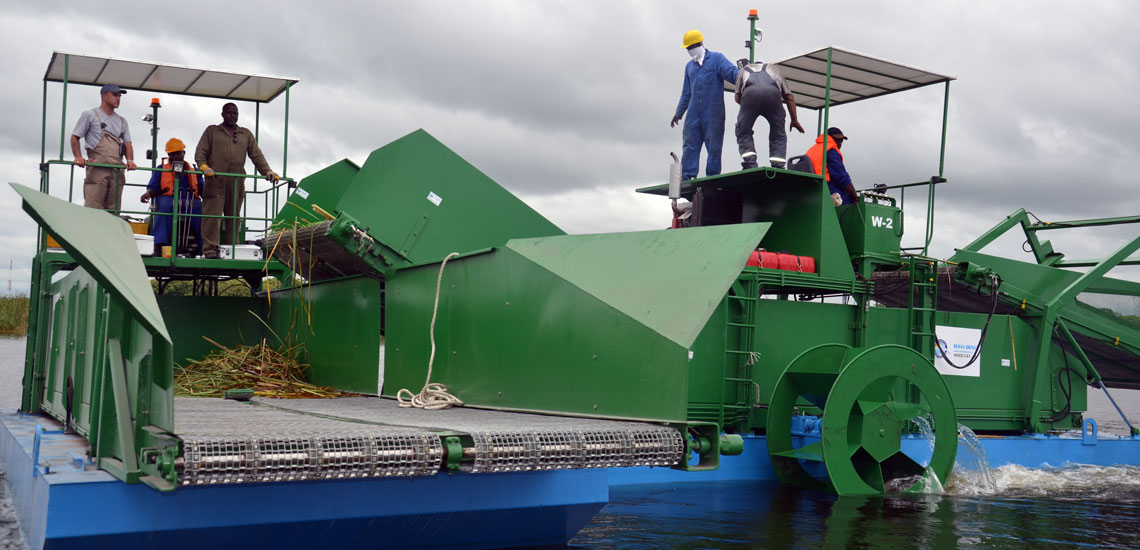

  • Heavy Duty Moving Conveyor Mesh Floor Feed Stern to Bow
  • Hydraulic Conveyor Drives.
  • Articulating Discharge Conveyor.
Transport Barge 10Transport Barge 12Transport Barge 14
Dimensions
Length10 m12 m14 m
Beam3 m3.3 m3.5 m
Height0.6 m0.7 m0.8 m
Draft2.3 m2.5 m2.5 m
General
Purpuse Of VesselAquatic Weed Harvesting + Transporting Weed + Dumping Weed + Trash and Debris Cleanup
Hull TypeMono Hull ( Standard ) or Catamaran ( Optional )
Material (Superstructure + Hull)Steel ( Standard ) or Aluminium ( Optional )
Classification (Optional)B.V. or Equivalent
Weight1500 kg3000 kg3750 kg
PaintEpoxy coating underwater hull, decks & superstructure with a lifetime of about 3 years.
Tank Capacity

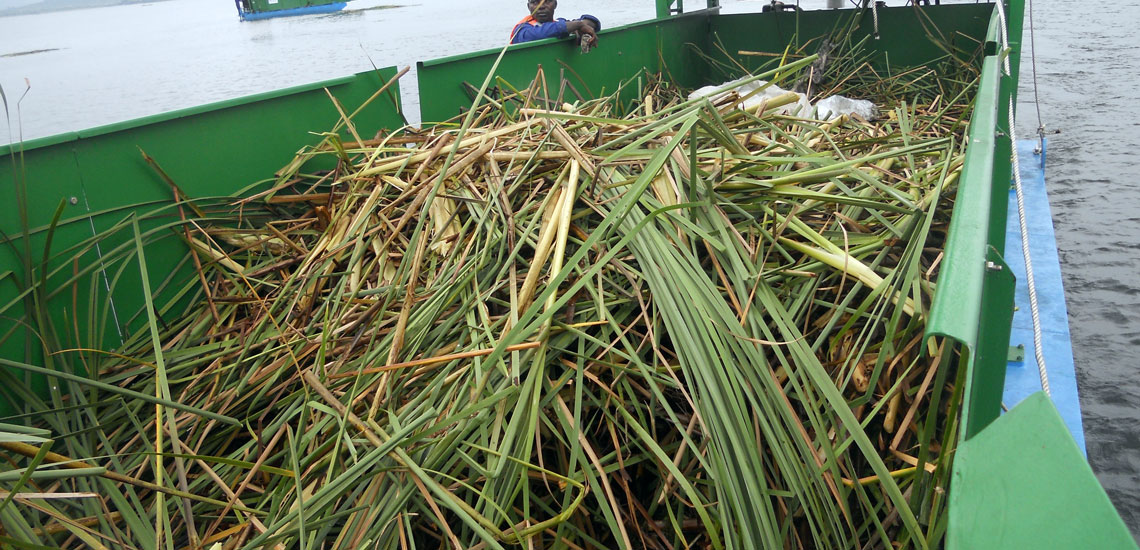

Solid Waste Tank10 m³22 m³28 m³
Hydraulic Tank50 lt70 lt100 lt
F/O Tank50 lt70 lt100 lt
Power and Propulsion
Propulsion Sterndrive ( Optional ) | Fixed Pitch ( Optional ) | Azimuth Thruster ( Standard )
PowerDiesel ( Standard ) | Gasoline (Optional)
Green PowerBattery ( Optional ) | Hydroen Fuel Cell (Optional) | Solar Energy (Optional) | LPG System (Optional)

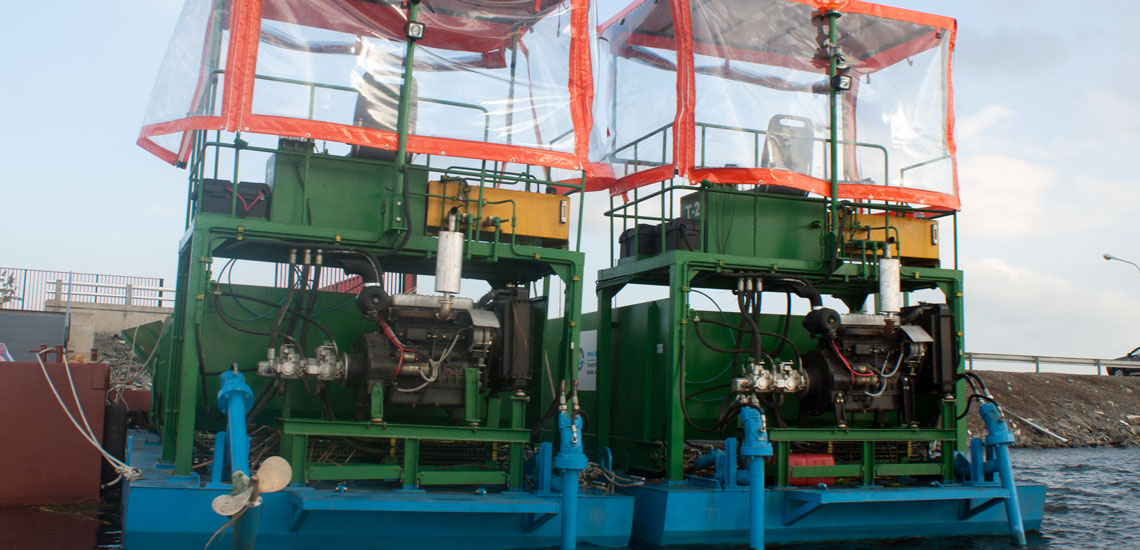

EngineWater-cooled diesel, 57 HPWater-cooled diesel, 80 HPWater-cooled diesel, 115 HP
Speed6 knot6 knot6 knot
High SpeedOptionalOptionalOptional
Electronic and Navigation
StandardGyro Compass / Rudder Indicator / Lighting Projector / Navigation Safety Light
Optional Horn / Wiper / Screen Display / Radar / GPS / Echosounder / VHF / Wind Direction Indicator / Autopilot / CCTV / Modem / Solar Panel / Search Light
Deck System
Conveyor Mesh MaterialGalvanized (Optional) | Stainless Steel (Standard ) | Plastic (Optional)
Conveyor Mesh Width2.3 m2.5 m2.7 m
Conveyor Overhang2.2 m2.2 m2.2 m
CraneManual Foldable Crane up to 1 ton (Standard) - Hydraulic Foldable Knuckle Crane - Up to 1 ton @ 6m (Optional)
Rescue Device1 x Rescue Boat
Fire Fighting Equipment (Optional)1 pcs
Dispersant System (Optional)MaviSpray - 100 lt/minMaviSpray - 100 lt/minMaviSpray - 100 lt/min
Fenders (Optional)Vessel Sides
Anchor Windlasses (Optional)1 pcs
Accommodations
Wheelhouse1 x Operator’s Seat with full instrumentation control panel without cabin
Air Condition with Operator CabinHeated (Standard) / Air-conditioned (Optional)
OptionalSeats / Sun-Rain Canopy / Operator Cabin / WC / Shower
Optional / Accessories
OptionalSpare Parts Kits / First Aid Kit / Trailer Conveyor / Shore Conveyor / Tilt Deck Trailer / Propeller Weed Cutter
